pDEST-pSP172BSSPE-Swa1::RfA
(Plasmid
#186396)
-
Purpose(Empty Backbone) Destination vector for ascidian transgenesis by electroporation of a Gateway-cloned gene of interest under control of a regulatory sequence cloned in the Swa1 restriction site.
-
Depositing Lab
-
Publication
-

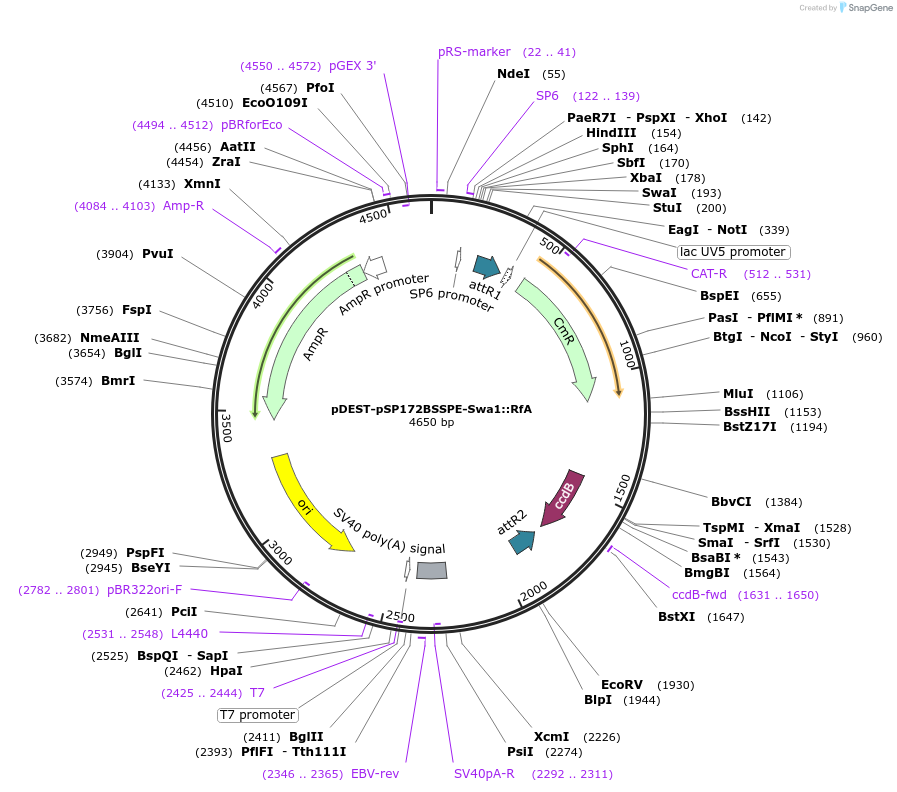

Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 186396 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |
Backbone
-
Vector backboneAscidian electroporation vector pSP72-1.27
-
Backbone manufacturerPMID: 9043074
- Backbone size (bp) 4650
-
Vector typeGateway destination vector
-
Selectable markersccdB gene
Growth in Bacteria
-
Bacterial Resistance(s)Chloramphenicol and Ampicillin, 25 & 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)ccdB Survival
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameNone
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
Gateway destination vector for electroporation experiments. The electroporation vector pSP72-1.27 was modified to give rise to pSP72BSSPE by replacing the NLS-LacZ reporter gene, cloned between BamH1 and EcoR1 by a BamH1-Swa1-Stu1-Pme1-EcoRV-EcoR1 polylinker (GGATCCATTTAAATAGGCCTTTGTTTAAACTTAGATATCGGAATTC).
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pDEST-pSP172BSSPE-Swa1::RfA was a gift from Patrick Lemaire (Addgene plasmid # 186396 ; http://n2t.net/addgene:186396 ; RRID:Addgene_186396) -
For your References section:
A multicassette Gateway vector set for high throughput and comparative analyses in ciona and vertebrate embryos. Roure A, Rothbacher U, Robin F, Kalmar E, Ferone G, Lamy C, Missero C, Mueller F, Lemaire P. PLoS One. 2007. 2(9):e916. 10.1371/journal.pone.0000916 PubMed 17878951
