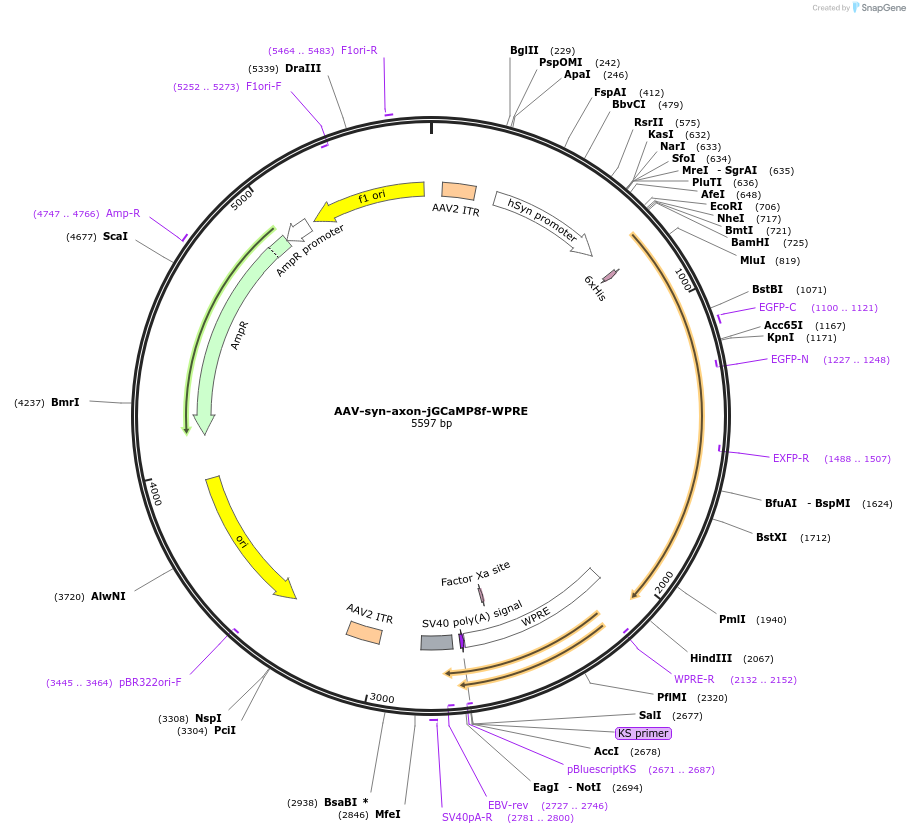

AAV-syn-axon-jGCaMP8f-WPRE
(Plasmid #186041)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 186041 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    AAV
  • Vector type
    Mammalian Expression, AAV

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    30°C
  • Growth Strain(s)
    NEB Stable
  • Copy number
    Low Copy

Gene/Insert

  • Gene/Insert name
    axon-jGCaMP8f
  • Alt name
    GAP43-jGCaMP8f
  • Species
    Synthetic
  • Insert Size (bp)
    1326
  • Promoter synapsin
  • Tag / Fusion Protein
    • GAP43-6xHis (N terminal on insert)

Cloning Information

  • Cloning method Gibson Cloning

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    AAV-syn-axon-jGCaMP8f-WPRE was a gift from Loren Looger (Addgene plasmid # 186041 ; http://n2t.net/addgene:186041 ; RRID:Addgene_186041)
