p159-RV-syn-dio-mScarlet-T2A
(Plasmid
#185700)
-
PurposeRetroviral vector expression cre-dependent membrane tagged mScarlet-T2A driven by the rat Synapsin promoter (with XhoI and PacI at 3'end of T2A to clone a gene of interest)
-
Depositing Lab
-
Publication
-

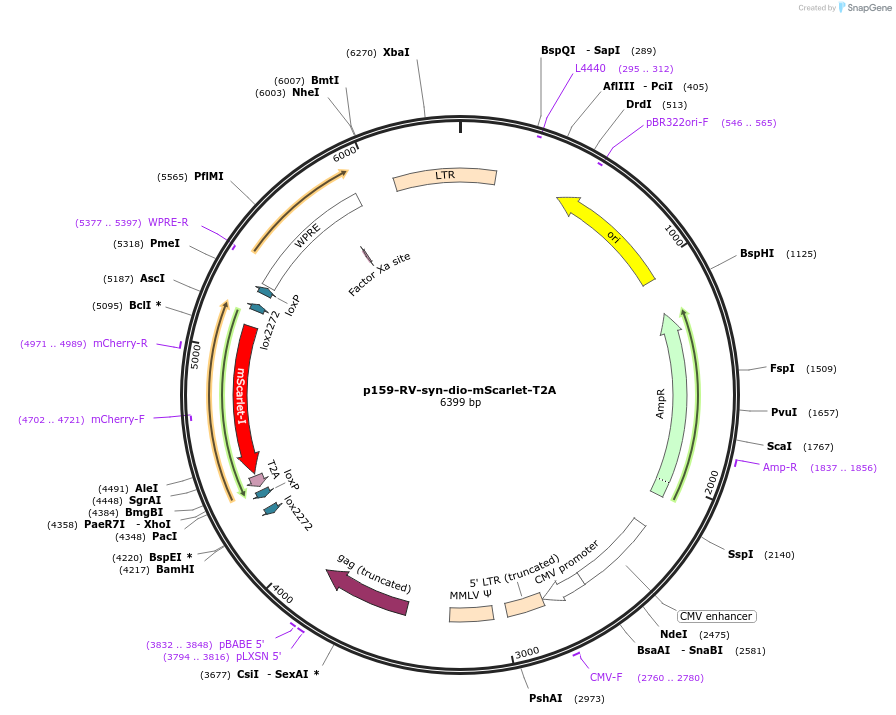

Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 185700 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |
Backbone
-
Vector backboneRV-Syn
-
Vector typeRetroviral
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)NEB Stable
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert namemScarlet
-
Alt namemScarlet
-
SpeciesSynthetic
-
Insert Size (bp)822
- Promoter Synapsin
-
Tag
/ Fusion Protein
- mScarlet palmitoylation with T2A on 3'-end
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site PacI (not destroyed)
- 3′ cloning site AscI (not destroyed)
- 5′ sequencing primer CAAGAGGTGCaagatagggggg (Common Sequencing Primers)
Resource Information
-
Supplemental Documents
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
p159-RV-syn-dio-mScarlet-T2A was a gift from Lynette Lim (Addgene plasmid # 185700 ; http://n2t.net/addgene:185700 ; RRID:Addgene_185700)
