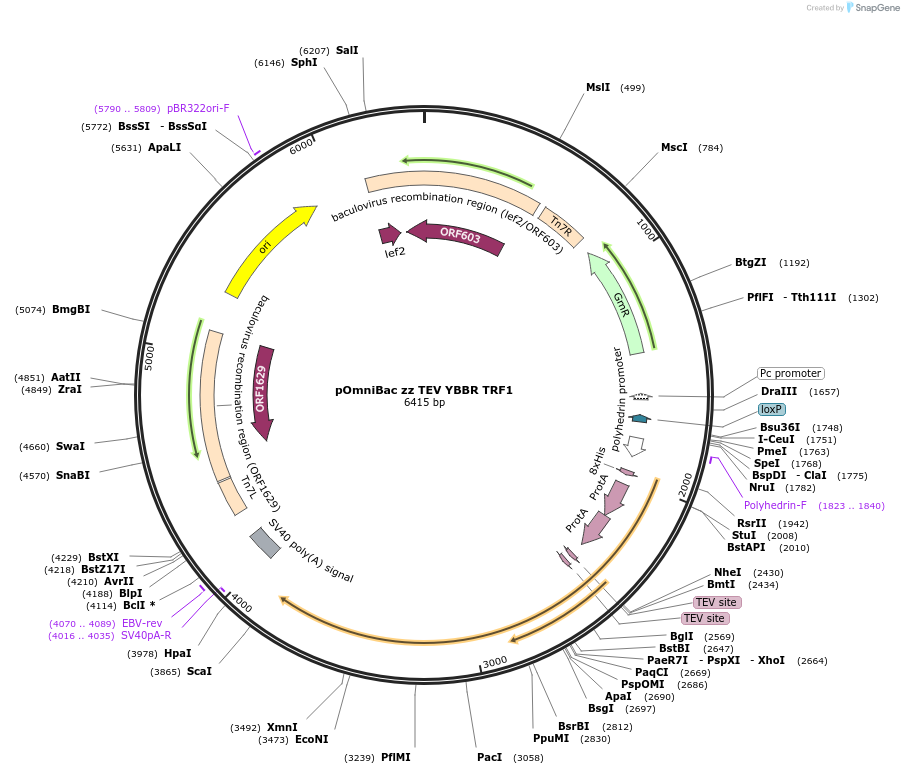

pOmniBac zz TEV YBBR TRF1
(Plasmid #185445)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 185445 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pOmnibac
  • Backbone size w/o insert (bp) 4554
  • Total vector size (bp) 6219
  • Vector type
    Insect Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Gentamicin, 10 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    Unknown

Gene/Insert

  • Gene/Insert name
    TRF1
  • Species
    H. sapiens (human)
  • Insert Size (bp)
    1128
  • GenBank ID
    NM_017489.3
  • Entrez Gene
    TERF1 (a.k.a. PIN2, TRBF1, TRF, TRF1, hTRF1-AS, t-TRF1)
  • Tags / Fusion Proteins
    • ZZ (N terminal on insert)
    • YBBR (N terminal on insert)

Cloning Information

  • Cloning method Gibson Cloning
  • 5′ sequencing primer GTAGACGCAAATTCCGCGGGGAAG
  • 3′ sequencing primer CCTCTACAAATGTGGTATGG
    • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pOmniBac zz TEV YBBR TRF1 was a gift from Ahmet Yildiz (Addgene plasmid # 185445 ; http://n2t.net/addgene:185445 ; RRID:Addgene_185445)

  • For your References section:

    Compartmentalization of telomeres through DNA-scaffolded phase separation. Jack A, Kim Y, Strom AR, Lee DSW, Williams B, Schaub JM, Kellogg EH, Finkelstein IJ, Ferro LS, Yildiz A, Brangwynne CP. Dev Cell. 2022 Jan 24;57(2):277-290.e9. doi: 10.1016/j.devcel.2021.12.017. 10.1016/j.devcel.2021.12.017 PubMed 35077681
