pRAR074-control-sfGFP
(Plasmid
#185032)
-
PurposeJ23108 promoter, scrambled 5'UTR, 90 nt of l31 coding region, glycine linker, sfGFP, trrnB
-
Depositing Lab
-

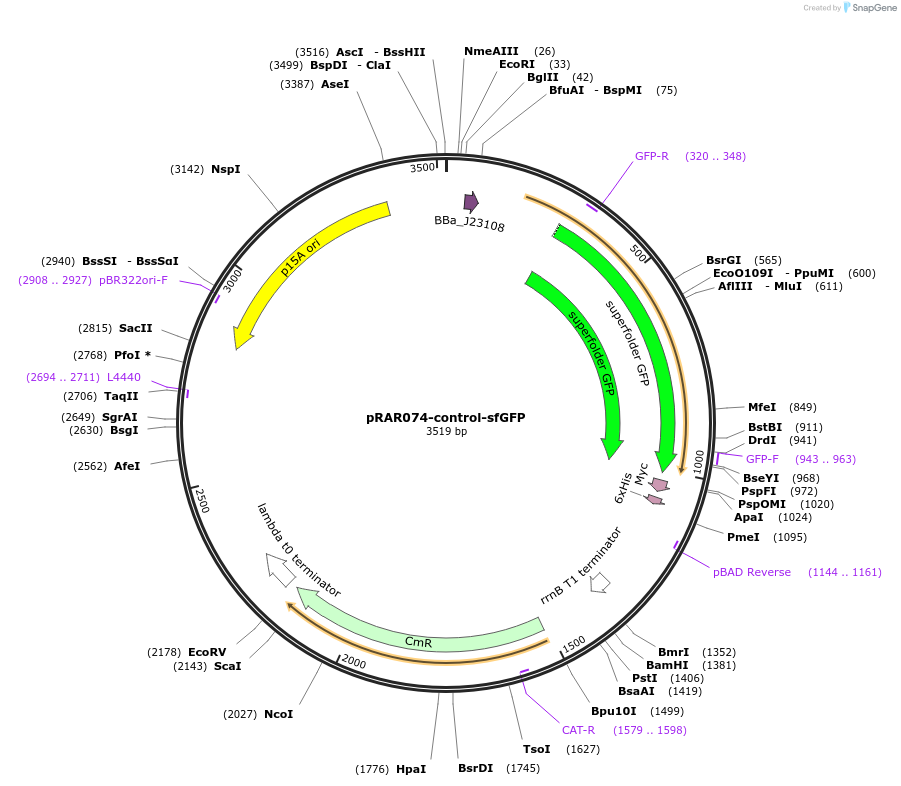

Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 185032 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |
Backbone
-
Vector backbonep15A oripACYC
-
Vector typeBacterial Expression
Growth in Bacteria
-
Bacterial Resistance(s)Chloramphenicol, 25 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameL31-sfGFP
-
Alt namerpmE-sfGFP
-
SpeciesE. coli MG1655
-
MutationNucleotides of rpmE 5'UTR scrambled, Only first 90 nt of rpmE coding present
Cloning Information
- Cloning method Gibson Cloning
Resource Information
-
Supplemental Documents
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pRAR074-control-sfGFP was a gift from Julius Lucks (Addgene plasmid # 185032 ; http://n2t.net/addgene:185032 ; RRID:Addgene_185032) -
For your References section:
Zur and zinc increase expression of E. coli ribosomal protein L31 through RNA-mediated repression of the repressor L31p. Rasmussen RA, Wang S, Camarillo JM, Sosnowski V, Cho BK, Goo YA, Lucks JB, O'Halloran TV. Nucleic Acids Res. 2022 Dec 9;50(22):12739-12753. doi: 10.1093/nar/gkac1086. 10.1093/nar/gkac1086 PubMed 36533433
