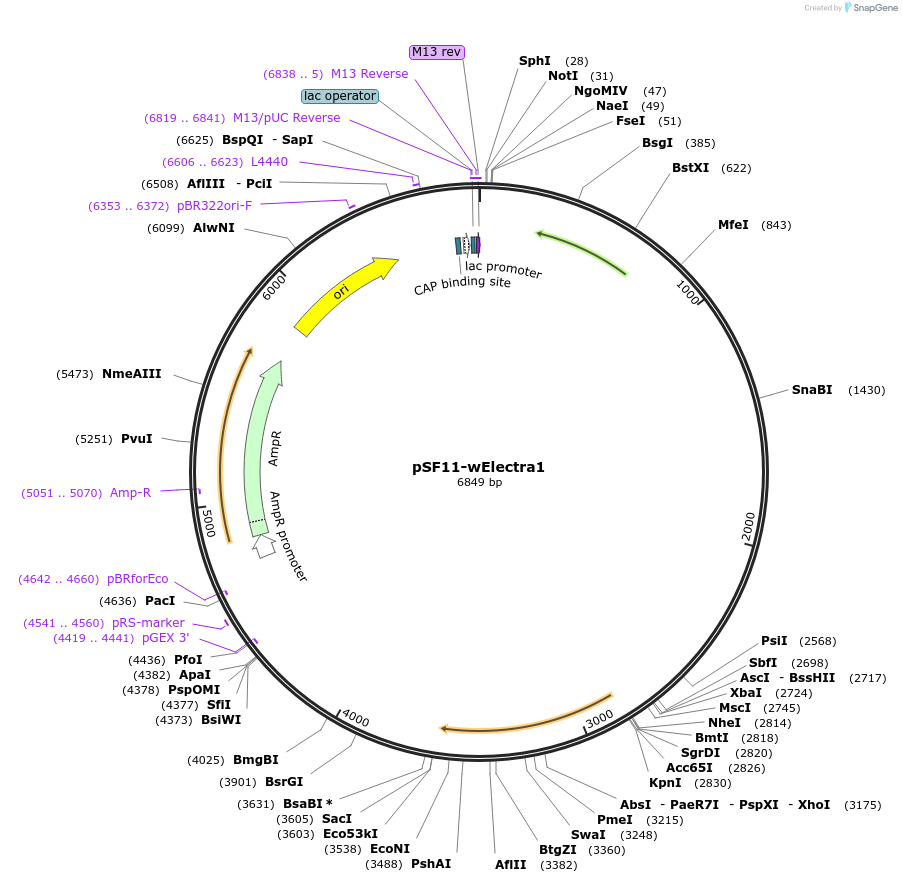

pSF11-wElectra1
(Plasmid #184932)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 184932 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pSF11
  • Backbone size w/o insert (bp) 6078
  • Total vector size (bp) 6859
  • Vector type
    Worm Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    Electra1
  • Species
    C. elegans (nematode)
  • Insert Size (bp)
    781
  • Promoter tag-168

Cloning Information

  • Cloning method Gibson Cloning
  • 5′ sequencing primer ccttggctagcgtcgacggtaccaaaaATGGTTTCCAAGGGAGAGG
  • 3′ sequencing primer atgacagcggccgatgcggagctcTTACTTGTAAAGCTCATCCATTCC
    • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pSF11-wElectra1 was a gift from Kiryl Piatkevich (Addgene plasmid # 184932 ; http://n2t.net/addgene:184932 ; RRID:Addgene_184932)

  • For your References section:

    Dual-expression system for blue fluorescent protein optimization. Papadaki S, Wang X, Wang Y, Zhang H, Jia S, Liu S, Yang M, Zhang D, Jia JM, Koster RW, Namikawa K, Piatkevich KD. Sci Rep. 2022 Jun 17;12(1):10190. doi: 10.1038/s41598-022-13214-0. 10.1038/s41598-022-13214-0 PubMed 35715437
