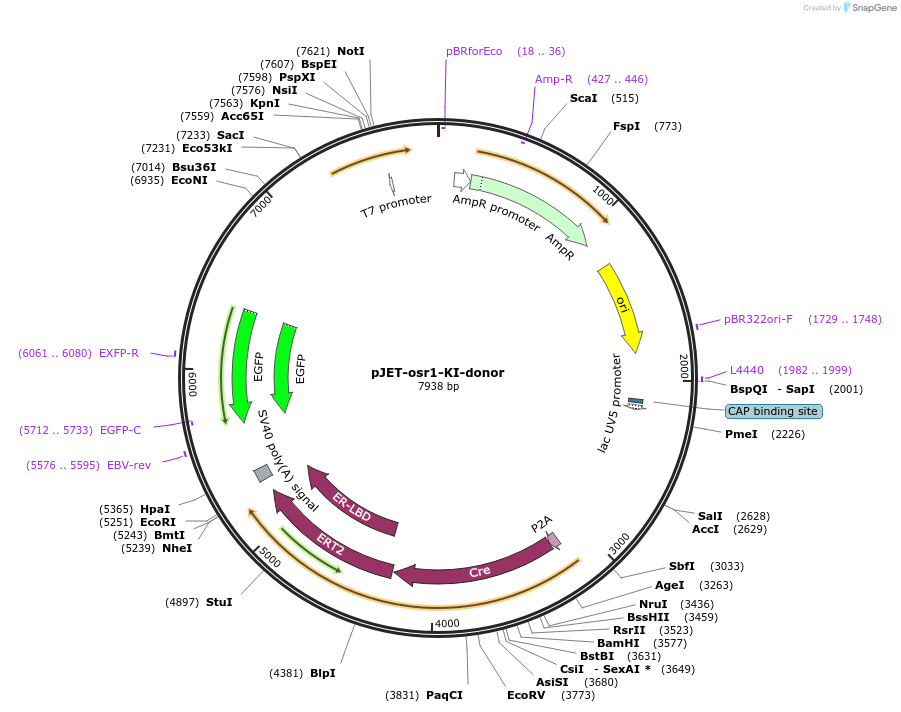

pJET-osr1-KI-donor
(Plasmid #184875)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 184875 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pJET1.2/blunt
  • Backbone manufacturer
    ThermoFisher Scientific
  • Backbone size w/o insert (bp) 2974
  • Total vector size (bp) 7956
  • Vector type
    Cre/Lox, CRISPR

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert 1

  • Gene/Insert name
    Odd-Skipped Related Transcription Factor 1 5' homology arm
  • Alt name
    Osr1 5' homology arm
  • Species
    Oryzias latipes
  • Insert Size (bp)
    487
  • GenBank ID
    XM_004082142.4

Cloning Information for Gene/Insert 1

  • Cloning method Gibson Cloning
  • 5′ sequencing primer AGAACATCGATTTTCCATGGCAG
  • 3′ sequencing primer CGGACAGAAGCATTTTCCAG
    • (Common Sequencing Primers)

Gene/Insert 2

  • Gene/Insert name
    Odd-Skipped Related Transcription Factor 1 3' homology arm
  • Alt name
    Osr1 3' homology arm
  • Species
    Oryzias latipes
  • Insert Size (bp)
    224
  • GenBank ID
    XM_004082142.4

Cloning Information for Gene/Insert 2

  • Cloning method Gibson Cloning
  • 5′ sequencing primer CAACTGGCTATGCCTGATTTT
  • 3′ sequencing primer CGACTCACTATAGGGAGAGCGGC
    • (Common Sequencing Primers)

Gene/Insert 3

  • Gene/Insert name
    p2a-CreERT2
  • Species
    Synthetic
  • Insert Size (bp)
    2040

Cloning Information for Gene/Insert 3

  • Cloning method Gibson Cloning
  • 5′ sequencing primer TCCAAAGAGAAGCCCTTCAA
  • 3′ sequencing primer CTAGTAACGGCCGCCAGTGT
    • (Common Sequencing Primers)

Gene/Insert 4

  • Gene/Insert name
    Myosin light chain 2 promoter
  • Alt name
    Cmlc2 promoter
  • Species
    D. rerio (zebrafish)
  • Insert Size (bp)
    899

Cloning Information for Gene/Insert 4

  • Cloning method Gibson Cloning
  • 5′ sequencing primer GTCGCCGTCCAGCTCGACCA
  • 3′ sequencing primer CCTCCCGAGAAGGAAAAGTC
    • (Common Sequencing Primers)

Gene/Insert 5

  • Gene/Insert name
    EGFP
  • Species
    Synthetic
  • Insert Size (bp)
    718

Cloning Information for Gene/Insert 5

  • Cloning method Gibson Cloning
  • 5′ sequencing primer TCTGGATCTACGTAATACGACTCA
  • 3′ sequencing primer TGCTGGAATCTGAGCACTTG
    • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pJET-osr1-KI-donor was a gift from Christoph Winkler (Addgene plasmid # 184875 ; http://n2t.net/addgene:184875 ; RRID:Addgene_184875)

  • For your References section:

    A novel non-disruptive and efficient knock-in allows fate tracing of resident osteoblast progenitors during repair of vertebral lesions in medaka. Hui TW, Winkler C. Development. 2022 May 20. pii: 275483. doi: 10.1242/dev.200238. 10.1242/dev.200238 PubMed 35593425
