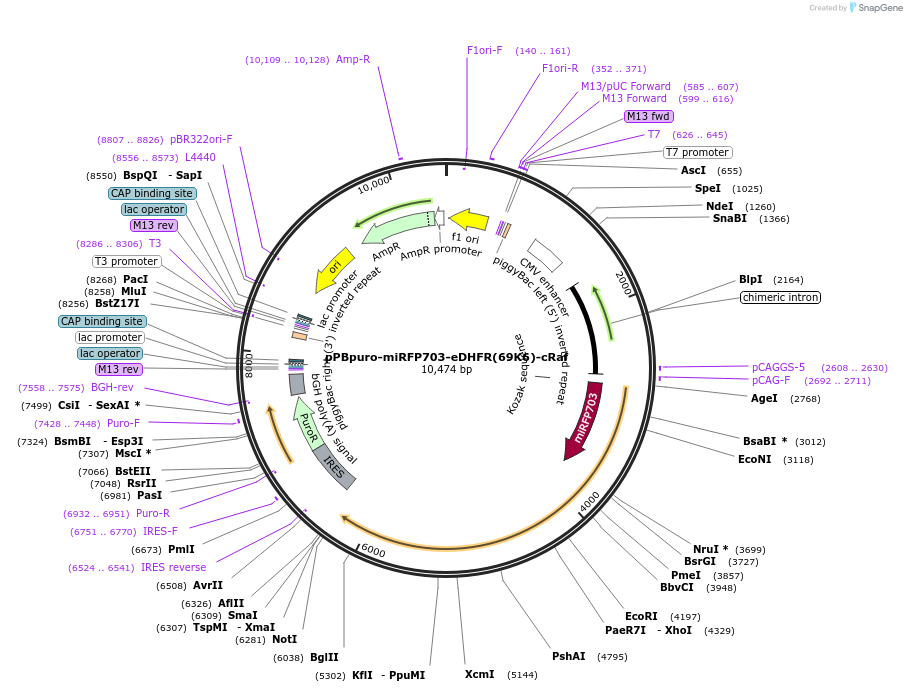

pPBpuro-miRFP703-eDHFR(69K6)-cRaf
(Plasmid #184717)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 184717 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pPBpuro
  • Backbone size w/o insert (bp) 7000
  • Total vector size (bp) 10500
  • Vector type
    Mammalian Expression
  • Selectable markers
    Puromycin

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    Unknown

Gene/Insert

  • Gene/Insert name
    miRFP703-eDHFR(69K6)-cRaf
  • Alt name
    iRaf
  • Species
    H. sapiens (human), Synthetic
  • Insert Size (bp)
    3500
  • Entrez Gene
    RAF1 (a.k.a. CMD1NN, CRAF, NS5, Raf-1, c-Raf)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pPBpuro-miRFP703-eDHFR(69K6)-cRaf was a gift from Michiyuki Matsuda (Addgene plasmid # 184717 ; http://n2t.net/addgene:184717 ; RRID:Addgene_184717)

  • For your References section:

    Calcium transients trigger switch-like discharge of prostaglandin E(2) in an extracellular signal-regulated kinase-dependent manner. Watabe T, Yamahira S, Takakura K, Thumkeo D, Narumiya S, Matsuda M, Terai K. eLife. 2024 Jan 26;12:RP86727. doi: 10.7554/eLife.86727. 10.7554/eLife.86727 PubMed 38276879
