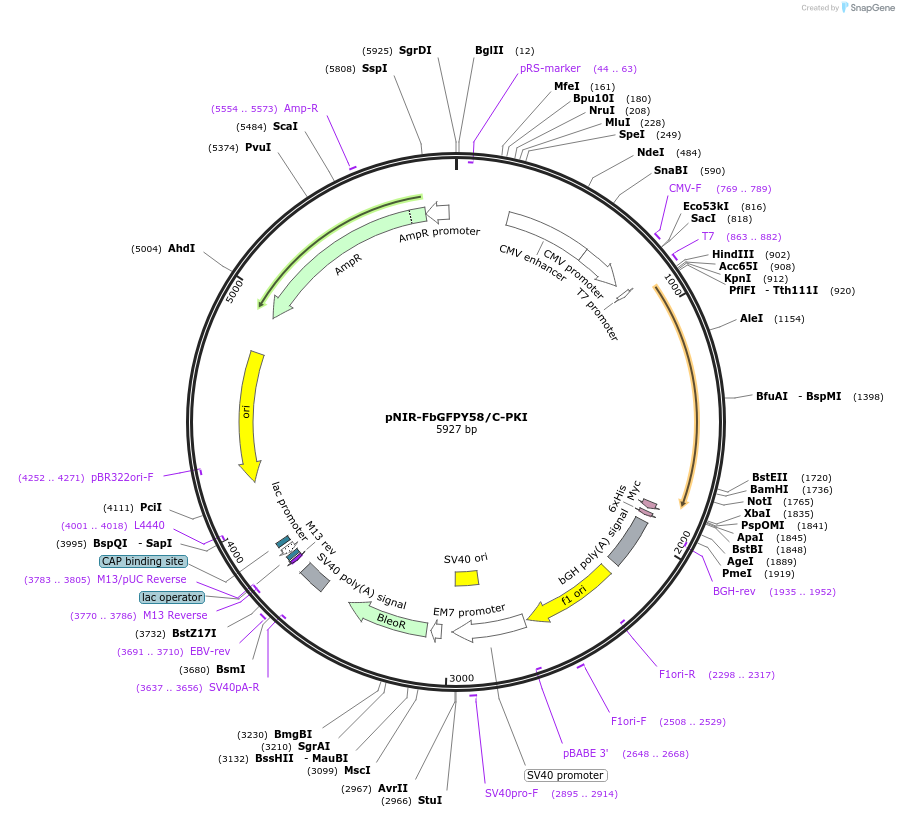

pNIR-FbGFPY58/C-PKI
(Plasmid #184685)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 184685 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pcDNA3.1
  • Backbone manufacturer
    Invitrogen
  • Vector type
    Mammalian Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    NIR-FbGFPY58/C-PKI
  • Species
    Synthetic
  • Promoter CMV

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site KpnI (not destroyed)
  • 3′ cloning site EcoRI (not destroyed)
  • 5′ sequencing primer CMV Forward
  • 3′ sequencing primer BGH Reverse
    • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pNIR-FbGFPY58/C-PKI was a gift from Vladislav Verkhusha (Addgene plasmid # 184685 ; http://n2t.net/addgene:184685 ; RRID:Addgene_184685)

  • For your References section:

    Single-domain near-infrared protein provides a scaffold for antigen-dependent fluorescent nanobodies. Oliinyk OS, Baloban M, Clark CL, Carey E, Pletnev S, Nimmerjahn A, Verkhusha VV. Nat Methods. 2022 May 23. pii: 10.1038/s41592-022-01467-6. doi: 10.1038/s41592-022-01467-6. 10.1038/s41592-022-01467-6 PubMed 35606446
