pX459-HypaCas9-ECT2_sgRNA
(Plasmid
#183873)
-
PurposepX459V2.0-HypaCas9 plasmid with ECT2 sgRNA for N-terminal tagging of Ect2 in human cells.
-
Depositing Lab
-

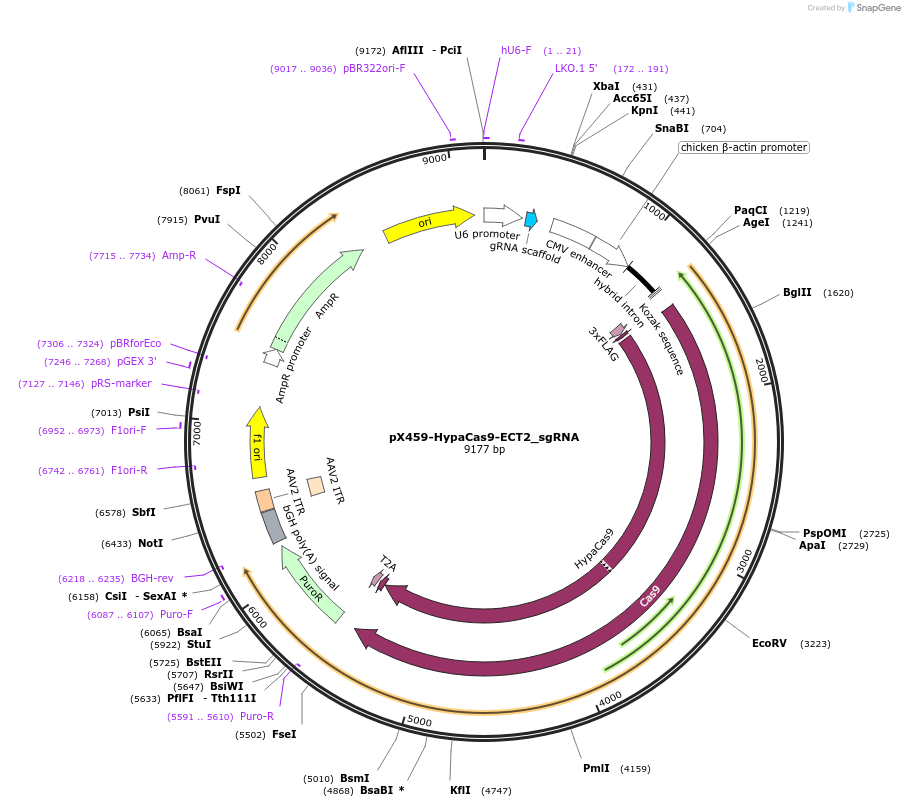

Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 183873 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |
Backbone
-
Vector backbonepX459V2.0-HypaCas9
- Total vector size (bp) 9178
-
Vector typeMammalian Expression, CRISPR
-
Selectable markersPuromycin
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)NEB Stable
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameECT2 sgRNA spacer
-
Alt nameEpithelial cell transforming 2
-
gRNA/shRNA sequenceTATTAACATCCACTACTGGG
-
SpeciesH. sapiens (human)
-
Entrez GeneECT2 (a.k.a. ARHGEF31)
- Promoter U6
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site BbsI (destroyed during cloning)
- 3′ cloning site BbsI (destroyed during cloning)
- 5′ sequencing primer gagggcctatttcccatgattcc
- 3′ sequencing primer ggccatttaccgtaagttatgtaacg (Common Sequencing Primers)
Resource Information
-
Supplemental Documents
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pX459-HypaCas9-ECT2_sgRNA was a gift from Alisa Piekny (Addgene plasmid # 183873 ; http://n2t.net/addgene:183873 ; RRID:Addgene_183873) -
For your References section:
Cytokinetic diversity in mammalian cells is revealed by the characterization of endogenous anillin, Ect2 and RhoA. Husser MC, Ozugergin I, Resta T, Martin VJJ, Piekny AJ. Open Biol. 2022 Nov;12(11):220247. doi: 10.1098/rsob.220247. Epub 2022 Nov 23. 10.1098/rsob.220247 PubMed 36416720
