pLenti-EML4-ALK variant 1
(Plasmid #183828)

• Purpose: Express EML4-ALK fusion variant 1 (E13;A20) in mammalian cells
• Depositing Lab: Aaron Hata
• Publication: Yoda et al Cancer Discov. 2018 Jun;8(6):714-729. doi: 10.1158/2159-8290.CD-17-1256. Epub 2018 Apr 12.

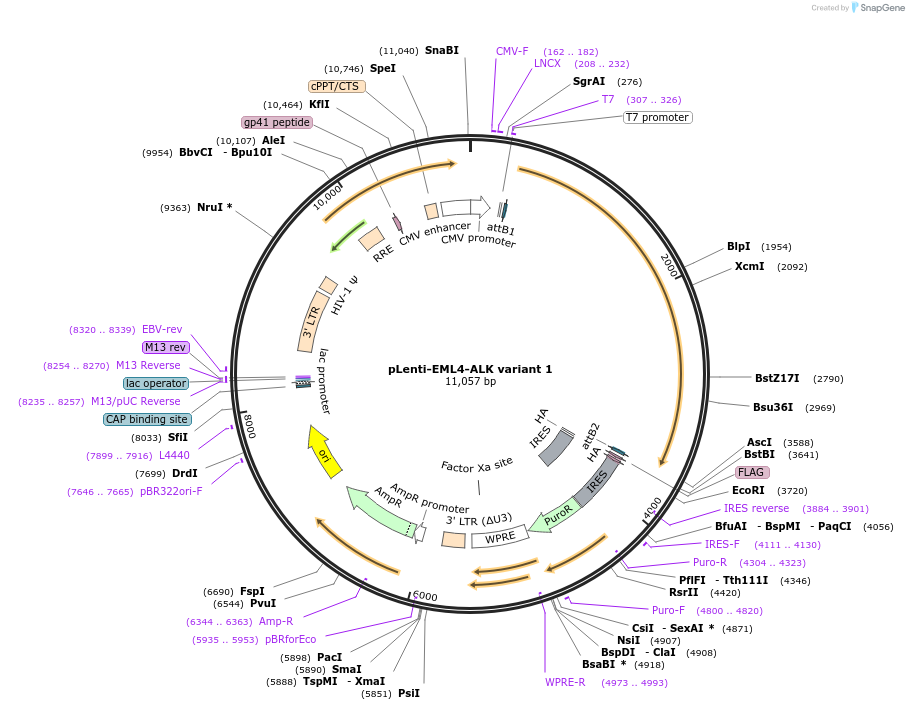

Backbone

• Vector backbone: pLenti
• Backbone size w/o insert (bp): 7877
• Total vector size (bp): 11054
• Vector type: Mammalian Expression, Lentiviral
• Selectable markers: Puromycin

Growth in Bacteria

• Bacterial Resistance(s): Ampicillin, 100 μg/mL
• Growth Temperature: 37°C
• Growth Strain(s): NEB Stable
• Copy number: Unknown

Gene/Insert 1

• Gene/Insert name: ALK Receptor Tyrosine Kinase
• Alt name: ALK
• Species: H. sapiens (human)
• Insert Size (bp): 1691
• GenBank ID: NM_004304
• Entrez Gene: ALK (a.k.a. ALK1, CD246, NBLST3)
• Promoter: CMV
• Tag / Fusion Protein:
  • The fusion protein of EML4 exon 1-13 and ALK exon 20-29

Cloning Information for Gene/Insert 1

• Cloning method: TOPO Cloning
• 5′ sequencing primer: T7

Gene/Insert 2

• Gene/Insert name: EMAP Like 4
• Alt name: EML4
• Species: H. sapiens (human)
• Insert Size (bp): 1489
• GenBank ID: NM_019063.5
• Entrez Gene: EML4 (a.k.a. C2orf2, ELP120, EMAP-4, EMAPL4, ROPP120)
• Promoter: CMV
• Tag / Fusion Protein:
  • The fusion protein of EML4 exon 1-13 and ALK exon 20-29

Cloning Information for Gene/Insert 2

• Cloning method: TOPO Cloning
• 5′ sequencing primer: T7

Resource Information

• Article Citing this Plasmid:
  • 1 Reference

Terms and Licenses

• Academic/Nonprofit Terms:
  • UBMTA
• Industry Terms:
  • Not Available to Industry
