pAAV-CAG-SV40NLSf-GFP-3xmiR122-WPRE-HGHpA
(Plasmid #183775)

• Purpose: AAV genome with a CAG driven eGFP reporter with mR122 target sequence repeats to reduce transgene expression in hepatocytes.
• Depositing Lab: Ben Deverman
• Publication: Krolak et al Nat Cardiovasc Res. 2022 Apr;1(4):389-400. doi: 10.1038/s44161-022-00046-4. Epub 2022 Apr 13.

Want a viral vector made from this plasmid?

Make a packaging request and we'll get back to you.

This service is available to academics and nonprofits only.

Please log in to submit a packaging request.

• Serotype: Select serotype for details See details about
• Pricing: Select serotype and quantity $ USD for preparation of µL virus + $30 USD for plasmid.
• How this works:
  • Place a request for a quantity of 10 (1 mL), 25 (2.5 mL), or 50 (5 mL). Our all-inclusive pricing includes DNA production and QC.
  • Addgene will quickly confirm that we can produce a high-quality prep for you.
  • Track your request and place an order from within your account. Payment information must be added before we can begin processing your order.
  • Receive your prep in 6–9 weeks after the MTA is approved by your organization.
  • Learn more about our Packaged on Request Service.

Backbone

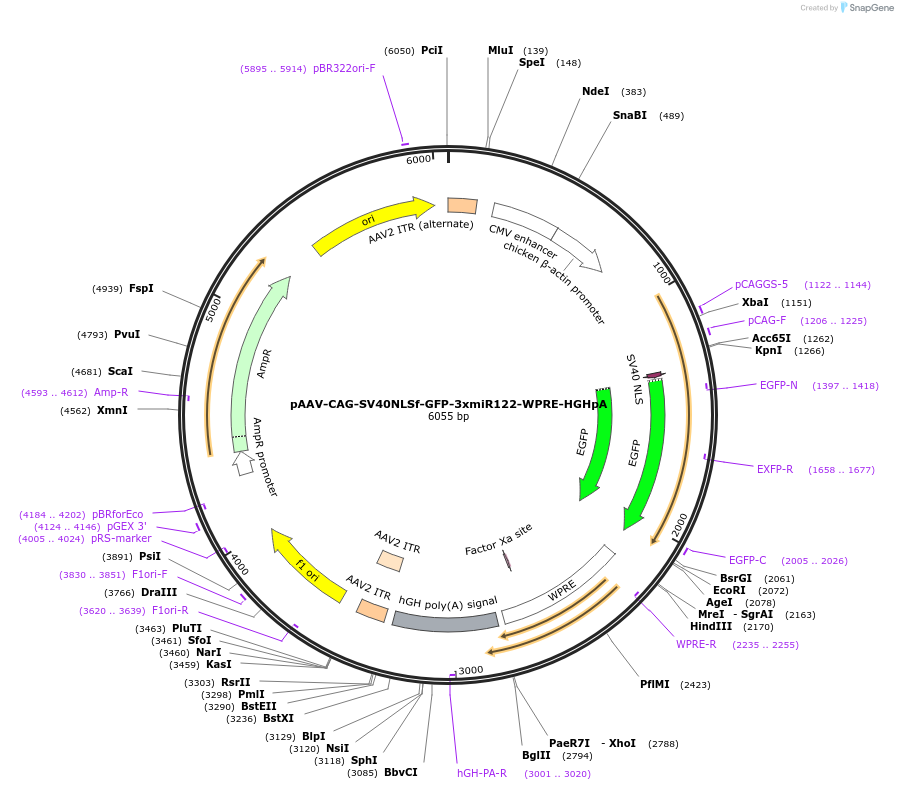

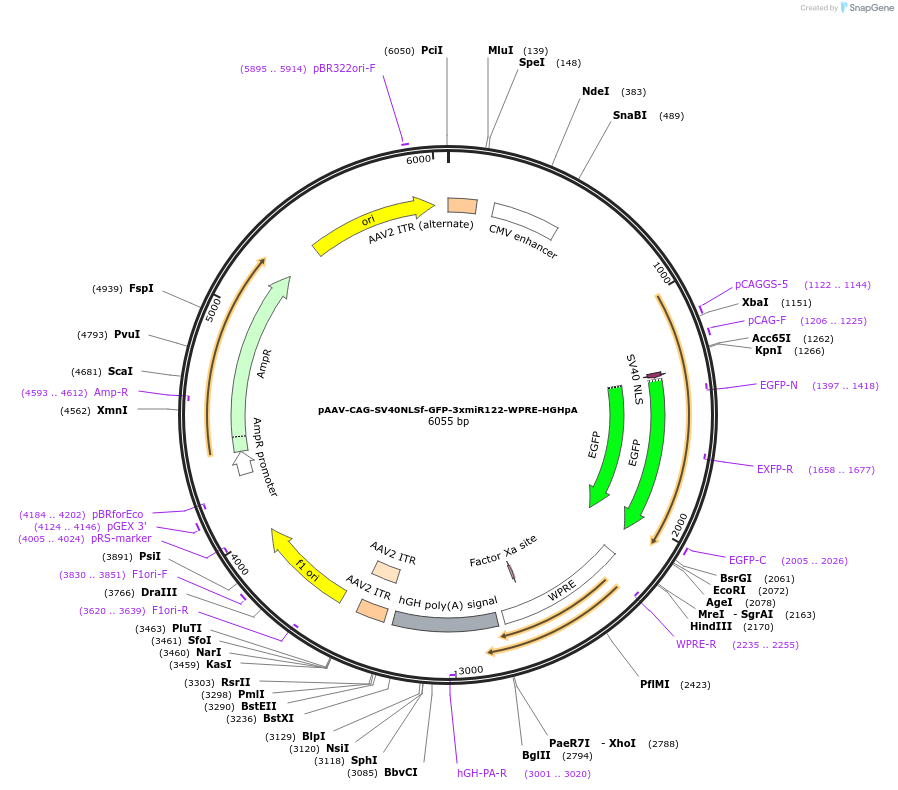

• Vector backbone: pAAV-CAG-3xmiR122-WPRE-HGHpA
• Backbone size w/o insert (bp): 5257
• Total vector size (bp): 6055
• Vector type: AAV

Growth in Bacteria

• Bacterial Resistance(s): Ampicillin, 100 μg/mL
• Growth Temperature: 30°C
• Growth Strain(s): NEB Stable
• Copy number: High Copy

Gene/Insert

• Gene/Insert name: NLS-GFP
• Species: Synthetic
• Insert Size (bp): 798
• Mutation: NA
• Promoter: CAG

Cloning Information

• Cloning method: Restriction Enzyme
• 5′ cloning site: KpnI (unknown if destroyed)
• 3′ cloning site: EcoRI (unknown if destroyed)
• 5′ sequencing primer: NA
• 3′ sequencing primer: NA

Resource Information

• Supplemental Documents:
  • pAAV-CAG-SV40NLSf-GFP-3xmiR122-WPRE-HGHpA.gbk
• Article Citing this Plasmid:
  • 1 Reference

Terms and Licenses

• Academic/Nonprofit Terms:
  • UBMTA
• Industry Terms:
  • Not Available to Industry
