pAAV-TRE-DIO-Casp3-TEV
(Plasmid
#183766)
-
PurposeThis plasmid is for use with neuronal cell-type selective activity tagging. The Caspase3 expression requires both neural activity and Cre recombinase.
-
Depositing Lab
-
Sequence Information
Ordering
This material is available to academics and nonprofits only.
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 183766 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 | |
Backbone
-
Vector backbonepUC
- Backbone size w/o insert (bp) 2900
- Total vector size (bp) 6280
-
Vector typeMammalian Expression, Mouse Targeting, AAV, Cre/Lox
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)NEB Stable
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameAAV transgene - tetO promoter-flex/DIO-Caspase3-TEV
-
SpeciesSynthetic
-
Insert Size (bp)3685
- Promoter tetO promoter
Cloning Information
- Cloning method Ligation Independent Cloning
- 5′ sequencing primer GGAGCTGTTGACCAATCAAGAG (Common Sequencing Primers)
Resource Information
-
A portion of this plasmid was derived from a plasmid made byPart of the insert, DIO-Casp3-TEV, was taken from Addgene plasmid #45580 (depositing labs Nirao Shah and Jim Wells).
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
How to cite this plasmid
( Back to top)
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pAAV-TRE-DIO-Casp3-TEV was a gift from William Wisden (Addgene plasmid # 183766 ; http://n2t.net/addgene:183766 ; RRID:Addgene_183766) -
For your References section:
A specific circuit in the midbrain detects stress and induces restorative sleep. Yu X, Zhao G, Wang D, Wang S, Li R, Li A, Wang H, Nollet M, Chun YY, Zhao T, Yustos R, Li H, Zhao J, Li J, Cai M, Vyssotski AL, Li Y, Dong H, Franks NP, Wisden W. Science. 2022 Jul;377(6601):63-72. doi: 10.1126/science.abn0853. Epub 2022 Jun 30. 10.1126/science.abn0853 PubMed 35771921

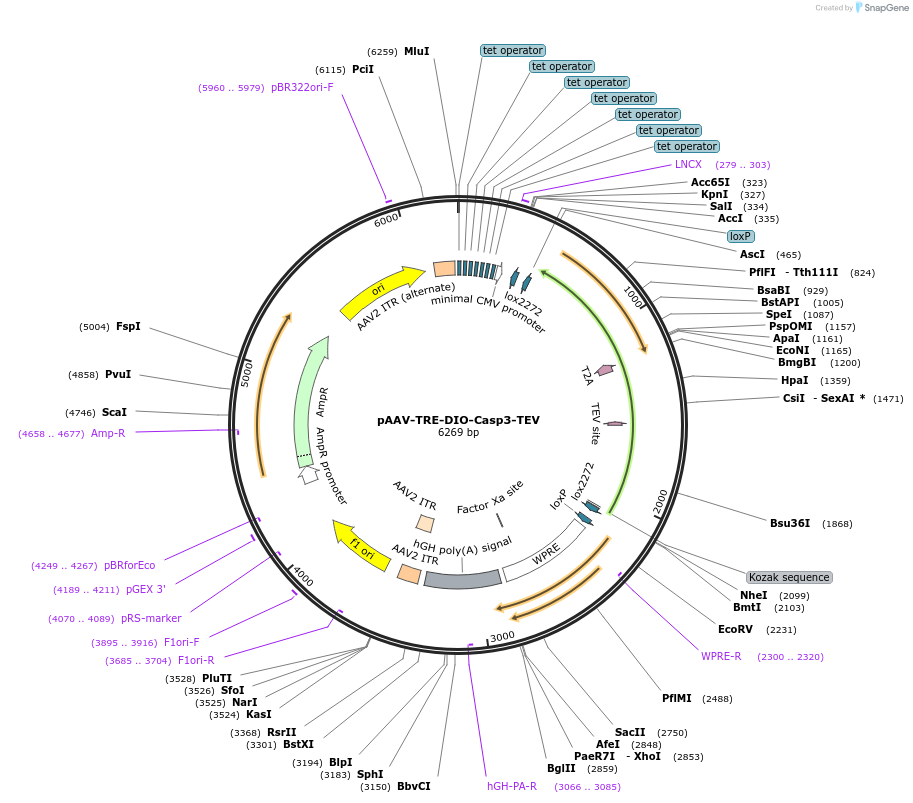

Map uploaded by the depositor.
