Bxb1-ASAP2f
(Plasmid
#183757)
-
PurposeBxb1-specific donor plasmid for intergrating a transcription unit for expression of ASAP2f voltage reporter
-
Depositing Lab
-
Sequence Information
Ordering
This material is available to academics and nonprofits only.
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 183757 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 | |
Backbone
-
Vector backbonepBR322/pUC
- Backbone size w/o insert (bp) 3410
- Total vector size (bp) 8280
-
Vector typeMammalian Expression
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameASAP2f
-
SpeciesSynthetic
-
Insert Size (bp)1278
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
How to cite this plasmid
( Back to top)
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
Bxb1-ASAP2f was a gift from Richard Davis (Addgene plasmid # 183757 ; http://n2t.net/addgene:183757 ; RRID:Addgene_183757) -
For your References section:
STRAIGHT-IN enables high-throughput targeting of large DNA payloads in human pluripotent stem cells. Blanch-Asensio A, Grandela C, Brandao KO, de Korte T, Mei H, Ariyurek Y, Yiangou L, Mol MPH, van Meer BJ, Kloet SL, Mummery CL, Davis RP. Cell Rep Methods. 2022 Sep 22;2(10):100300. doi: 10.1016/j.crmeth.2022.100300. eCollection 2022 Oct 24. 10.1016/j.crmeth.2022.100300 PubMed 36313798

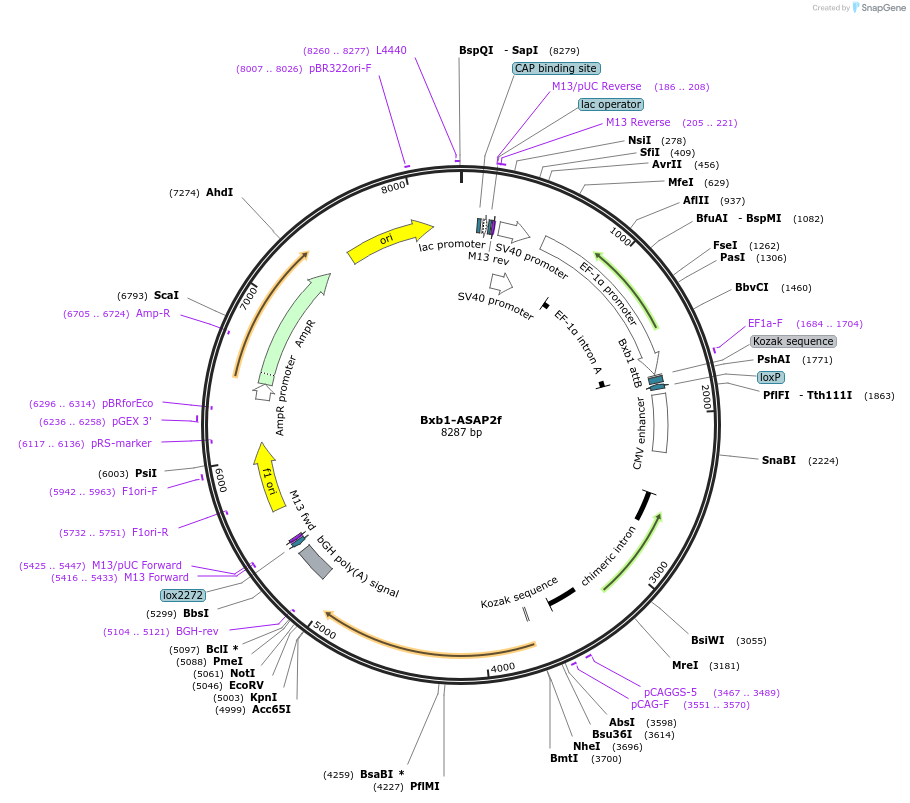

Map uploaded by the depositor.
