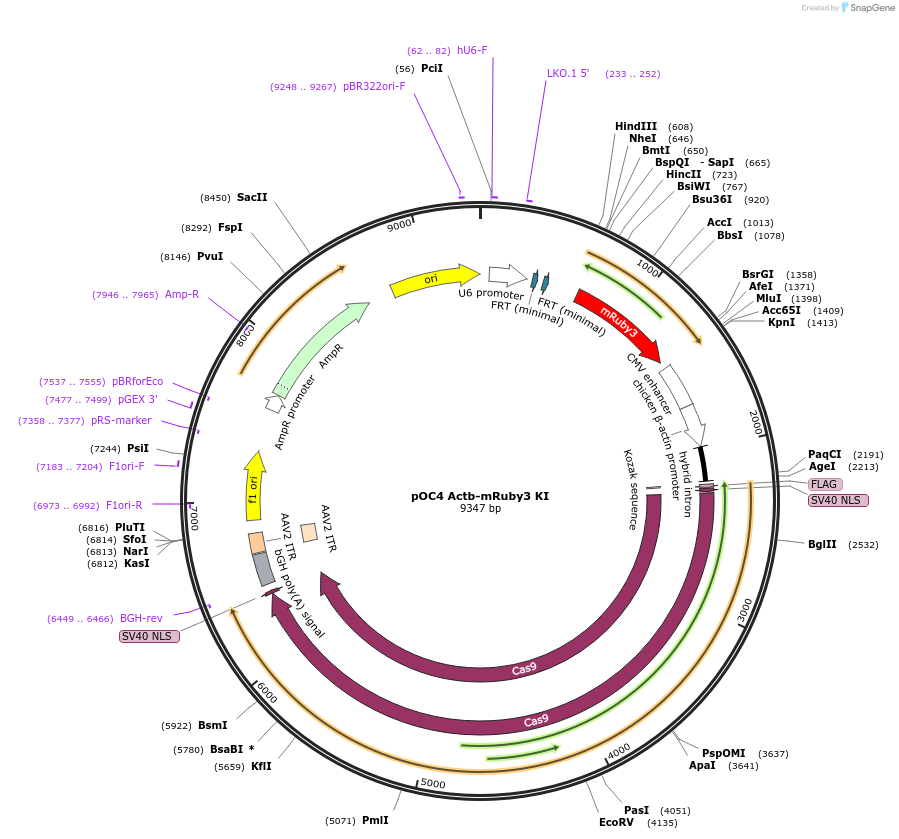

pOC4 Actb-mRuby3 KI
(Plasmid
#183437)
-
PurposeFlpON knock-in for mRuby3-beta-actin (amino acid position: before start codon)
-
Depositing Lab
-
Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 183437 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |
Backbone
-
Vector backbonepOC4
-
Vector typeMammalian Expression, CRISPR
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert namegRNA and mRuby3 donor
-
gRNA/shRNA sequenceTGTGCCTTGATAGTTCGCCA
-
SpeciesR. norvegicus (rat)
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site unknown (unknown if destroyed)
- 5′ sequencing primer ctagtccgtttttagcgcgt
- 3′ sequencing primer cgggccatttaccgtaagtt (Common Sequencing Primers)
Resource Information
-
Supplemental Documents
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
Please visit https://www.biorxiv.org/content/10.1101/2022.01.02.474730v1 for bioRxiv preprint.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pOC4 Actb-mRuby3 KI was a gift from Harold MacGillavry (Addgene plasmid # 183437 ; http://n2t.net/addgene:183437 ; RRID:Addgene_183437) -
For your References section:
Duplex Labeling and Manipulation of Neuronal Proteins Using Sequential CRISPR/Cas9 Gene Editing. Droogers WJ, Willems J, MacGillavry HD, de Jong APH. eNeuro. 2022 Jul 18;9(4):ENEURO.0056-22.2022. doi: 10.1523/ENEURO.0056-22.2022. 10.1523/ENEURO.0056-22.2022 PubMed 35851300
