1161F
(Plasmid
#183138)
-
PurposePlasmid supports expression of 2 gRNAs targeting D.suzukii sxl, and 3 gRNA targeting D.suzukii bTub,Hr5Ie1-eGFP tagged, and can be integrated with pBac.
-
Depositing Lab
-
Publication
-
Sequence Information
Ordering
This material is available to academics and nonprofits only.
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 183138 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 | |
Backbone
-
Vector backbonepBac
- Total vector size (bp) 11693
-
Vector typeInsect Expression, CRISPR
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameU6.3-gRNAs[sxl, bTub]
-
gRNA/shRNA sequenceccgatctggttaccgcattg ttccggagccggtaccgcca acatctttagaccccgaggc ggcggcagcggcgggaatgg gattgtcaactacttgcccc
-
SpeciesD. melanogaster (fly); D.suzukii
Resource Information
-
Supplemental Documents
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
How to cite this plasmid
( Back to top)
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
1161F was a gift from Omar Akbari (Addgene plasmid # 183138 ; http://n2t.net/addgene:183138 ; RRID:Addgene_183138) -
For your References section:
Precision Guided Sterile Males Suppress Populations of an Invasive Crop Pest. Kandul NP, Liu J, Buchman A, Shriner IC, Corder RM, Warsinger-Pepe N, Yang T, Yadav AK, Scott MJ, Marshall JM, Akbari OS. GEN Biotechnology (2022) 1:4, 372-385 10.1089/genbio.2022.0019

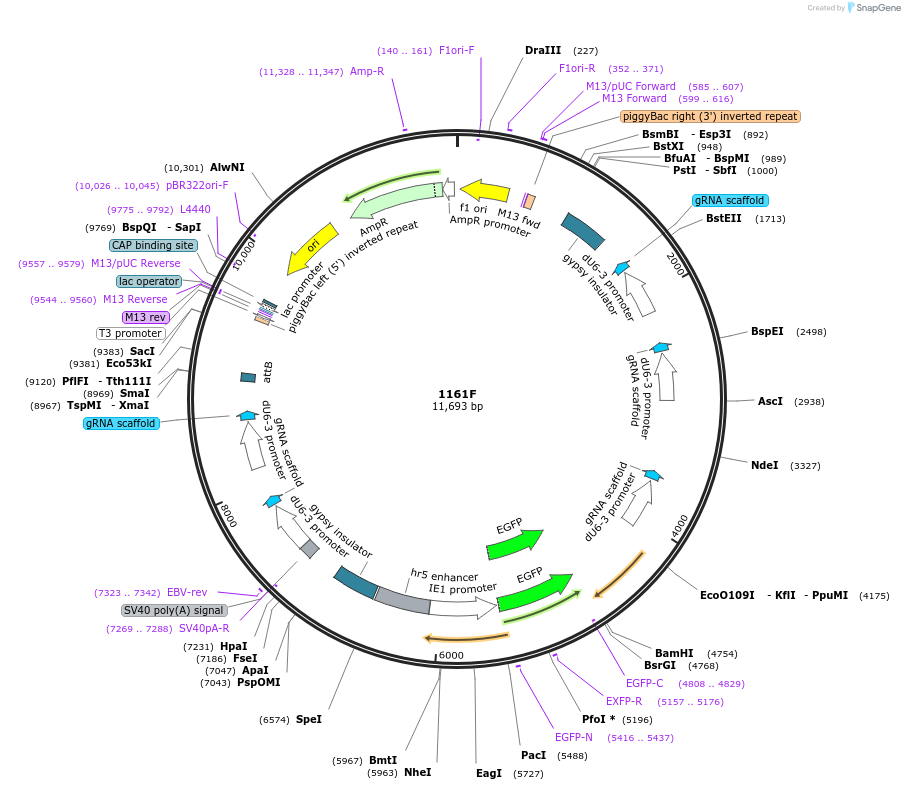

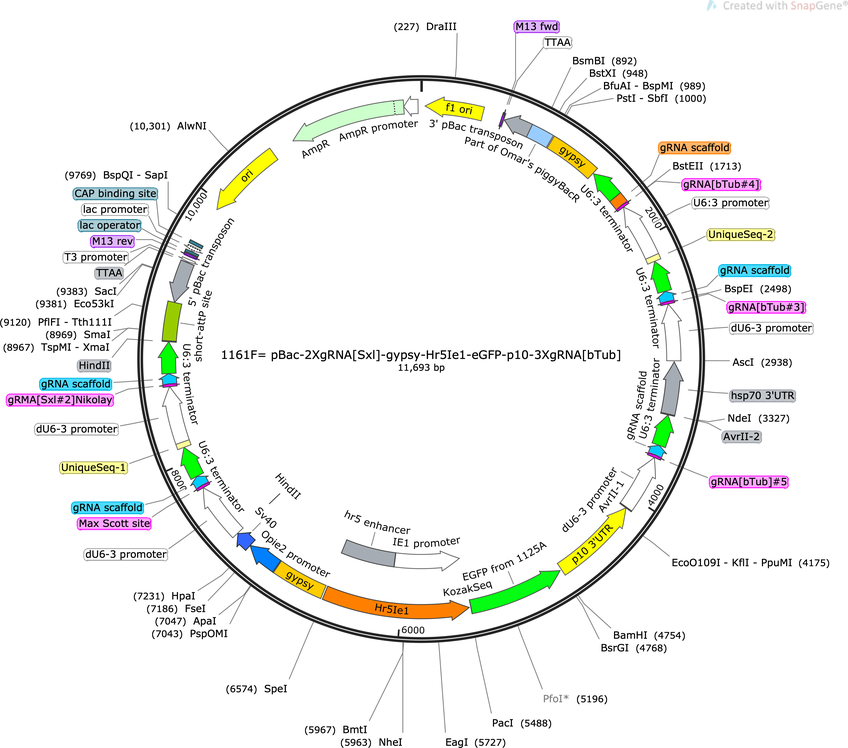

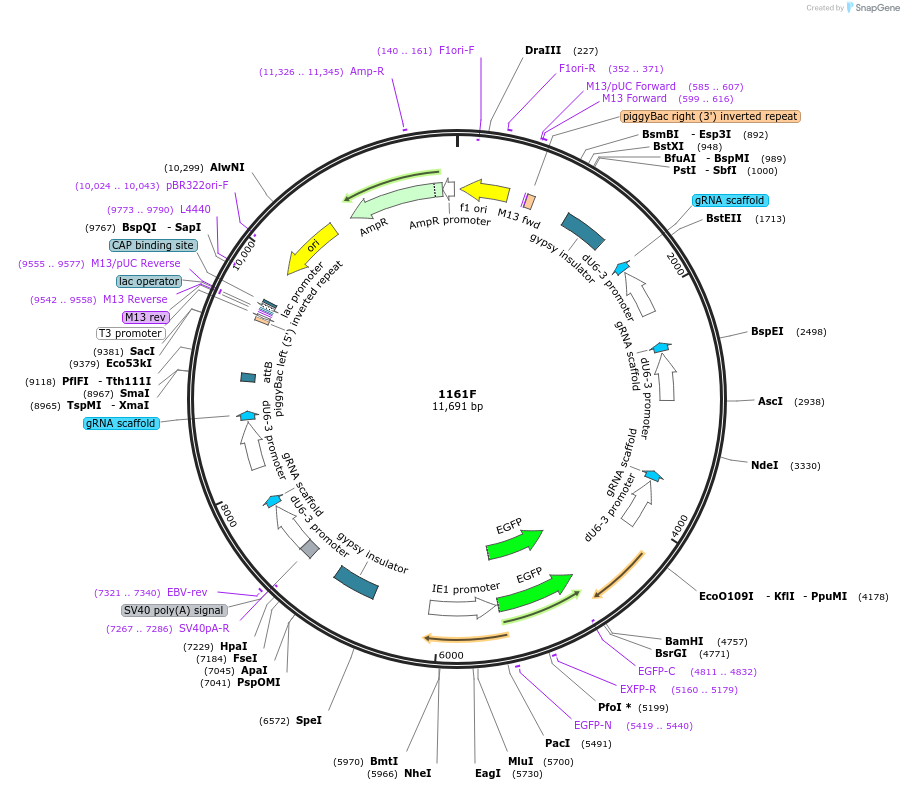

Map uploaded by the depositor.
