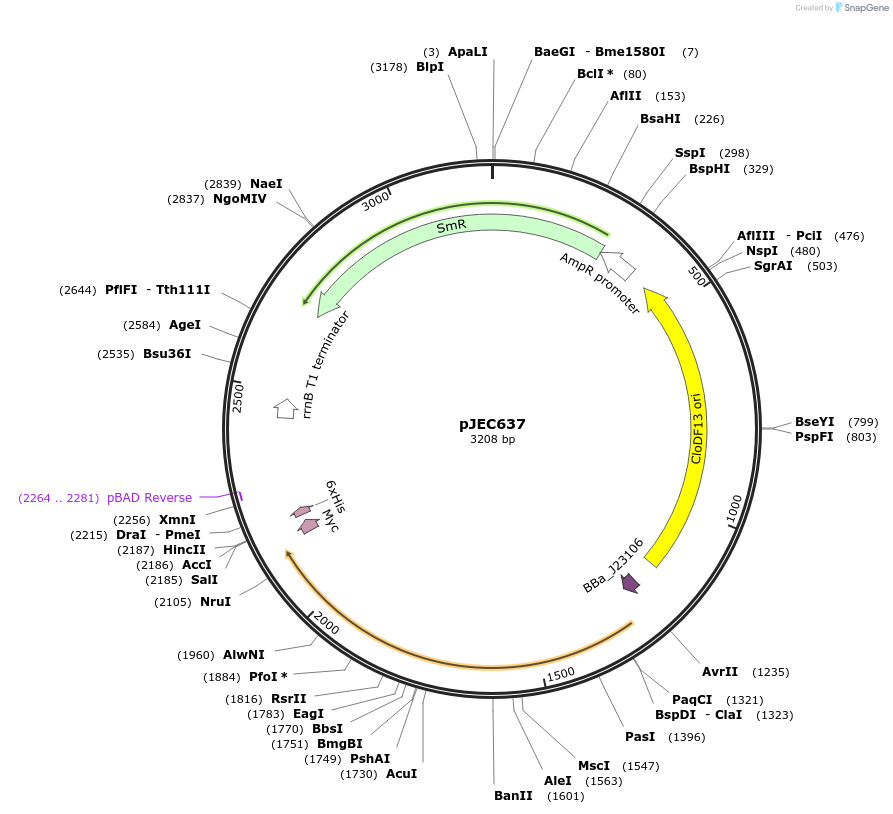

pJEC637
(Plasmid #182956)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 182956 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    CloDF13
  • Backbone size w/o insert (bp) 2400
  • Total vector size (bp) 3208
  • Vector type
    Bacterial Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Spectinomycin, 50 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    Unknown

Gene/Insert

  • Gene/Insert name
    AlphaNTD( P. aeruginosa) - SynZip17
  • Species
    P. aeruginosa
  • Insert Size (bp)
    861
  • Promoter J23106
  • Tag / Fusion Protein
    • SynZip17 (C terminal on insert)

Cloning Information

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pJEC637 was a gift from James Chappell (Addgene plasmid # 182956 ; http://n2t.net/addgene:182956 ; RRID:Addgene_182956)

  • For your References section:

    Uncovering the Distinct Properties of a Bacterial Type I-E CRISPR Activation System. Villegas Kcam MC, Tsong AJ, Chappell J. ACS Synth Biol. 2022 Jan 25. doi: 10.1021/acssynbio.1c00496. 10.1021/acssynbio.1c00496 PubMed 35077145
