pAAV9-hSyn-iFluoxSnFR_PM
(Plasmid #182822)

• Purpose: Develop a family of genetically encoded fluorescent biosensors for nicotinic agonists, termed iDrugSnFRs, thus enabling optical subcellular pharmacokinetics for nicotinic agonists
• Depositing Lab: Henry Lester
• Publication: Nichols et al J Neurosci. 2023 Mar 2:JN-RM-1519-22. doi: 10.1523/JNEUROSCI.1519-22.2022.

Want a viral vector made from this plasmid?

Make a packaging request and we'll get back to you.

This service is available to academics and nonprofits only.

Please log in to submit a packaging request.

• Serotype: Select serotype for details See details about
• Pricing: Select serotype and quantity $ USD for preparation of µL virus + $30 USD for plasmid.
• How this works:
  • Place a request for a quantity of 10 (1 mL), 25 (2.5 mL), or 50 (5 mL). Our all-inclusive pricing includes DNA production and QC.
  • Addgene will quickly confirm that we can produce a high-quality prep for you.
  • Track your request and place an order from within your account. Payment information must be added before we can begin processing your order.
  • Receive your prep in 6–9 weeks after the MTA is approved by your organization.
  • Learn more about our Packaged on Request Service.

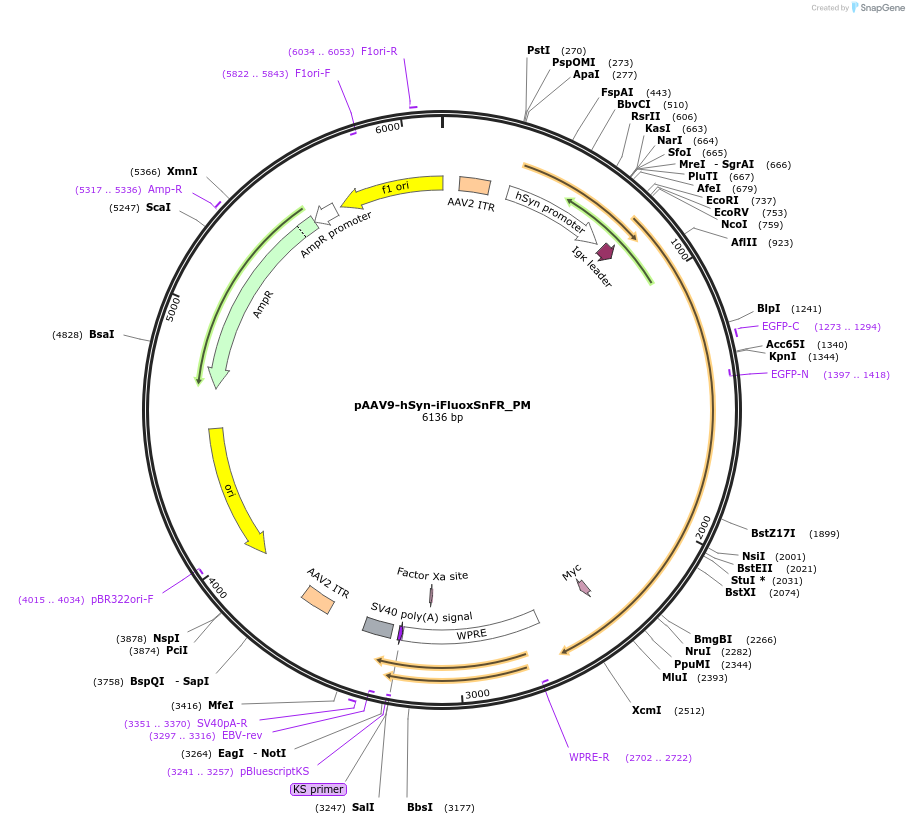

Backbone

• Vector backbone: pAAV9-hSyn
• Backbone manufacturer: Penn Vector Core
• Backbone size w/o insert (bp): 3373
• Vector type: AAV

Growth in Bacteria

• Bacterial Resistance(s): Ampicillin, 100 μg/mL
• Growth Temperature: 30°C
• Growth Strain(s): NEB Stable
• Copy number: Low Copy

Gene/Insert

• Gene/Insert name: iFluoxSnFR_PM
• Species: Synthetic
• Insert Size (bp): 1827
• Promoter: hSyn

Cloning Information

• Cloning method: Restriction Enzyme
• 5′ cloning site: EcoRI (not destroyed)
• 3′ cloning site: HindIII (not destroyed)
• 5′ sequencing primer: Custom hSyn For seq
• 3′ sequencing primer: WPRE Reverse

Resource Information

• Supplemental Documents:
  • paav9-hsyn-ifluoxsnfr_pm.gb

Terms and Licenses

• Academic/Nonprofit Terms:
  • UBMTA
• Industry Terms:
  • Not Available to Industry

Depositor Comments

For additional reference, please see Nichols et al. 2022 Elife, doi.org/10.7554/eLife.74648.
