pAAV9-hSyn-iFluoxSnFR_ER
(Plasmid #182821)

• Purpose: Develop a family of genetically encoded fluorescent biosensors for nicotinic agonists, termed iDrugSnFRs, thus enabling optical subcellular pharmacokinetics for nicotinic agonists
• Depositing Lab: Henry Lester
• Publication: Nichols et al J Neurosci. 2023 Mar 2:JN-RM-1519-22. doi: 10.1523/JNEUROSCI.1519-22.2022.

Backbone

• Vector backbone: pAAV9-hSyn
• Backbone manufacturer: Penn Vector Core
• Backbone size w/o insert (bp): 5005
• Vector type: AAV

Growth in Bacteria

• Bacterial Resistance(s): Ampicillin, 100 μg/mL
• Growth Temperature: 30°C
• Growth Strain(s): NEB Stable
• Copy number: Low Copy

Gene/Insert

• Gene/Insert name: iFluoxSnFR_ER
• Species: Synthetic
• Insert Size (bp): 1650
• Promoter: hSyn

Cloning Information

• Cloning method: Restriction Enzyme
• 5′ cloning site: EcoRI (not destroyed)
• 3′ cloning site: HindIII (not destroyed)
• 5′ sequencing primer: Custom hSyn For seq
• 3′ sequencing primer: WPRE Reverse

Resource Information

• Supplemental Documents:

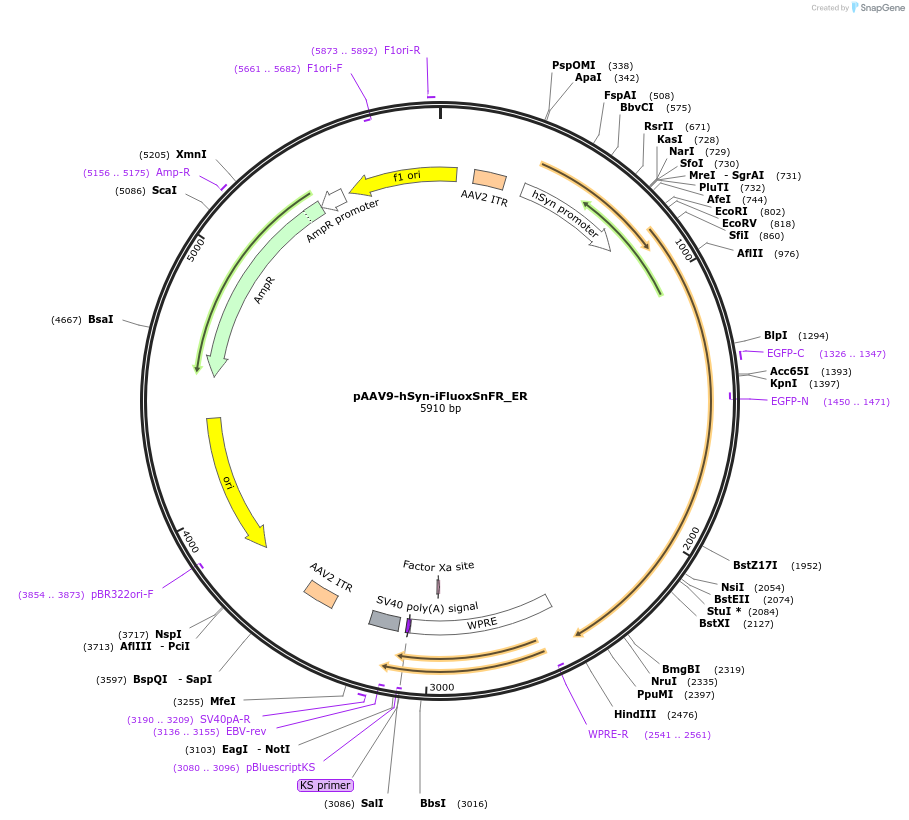

  • paav9-hsyn-ifluoxsnfr_er.gb

Terms and Licenses

• Academic/Nonprofit Terms:
  • UBMTA
• Industry Terms:
  • Not Available to Industry

Depositor Comments

For additional reference, please see Nichols et al. 2022 Elife, doi.org/10.7554/eLife.74648.
