SnFR_S074
(Plasmid
#182811)
-
PurposeDevelop a family of genetically encoded fluorescent biosensors for nicotinic agonists, termed iDrugSnFRs, thus enabling optical subcellular pharmacokinetics for nicotinic agonists
-
Depositing Lab
-
Publication
-
Sequence Information
Ordering
This material is available to academics and nonprofits only.
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 182811 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 | |

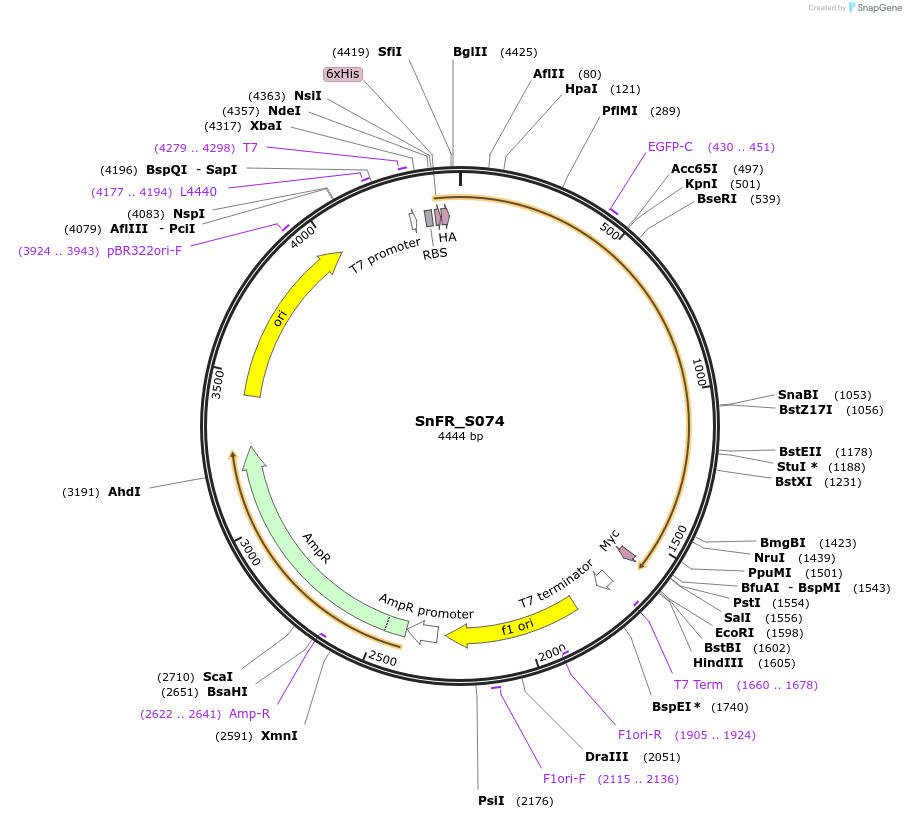

Backbone
-
Vector backbonepHHM.X51
-
Backbone manufacturerCaltech
- Backbone size w/o insert (bp) 2761
-
Vector typeBacterial Expression
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameS074-CholineSnFR
-
SpeciesSynthetic
-
Insert Size (bp)1683
- Promoter T7
-
Tags
/ Fusion Proteins
- 6xHis, HA (N terminal on insert)
- Myc (C terminal on insert)
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site NdeI (not destroyed)
- 3′ cloning site HindIII (not destroyed)
- 5′ sequencing primer T7
- 3′ sequencing primer T7 term (Common Sequencing Primers)
Resource Information
-
Supplemental Documents
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
For additional reference, please see Nichols et al. 2022 Elife, doi.org/10.7554/eLife.74648.
How to cite this plasmid
( Back to top)
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
SnFR_S074 was a gift from Henry Lester (Addgene plasmid # 182811 ; http://n2t.net/addgene:182811 ; RRID:Addgene_182811)
