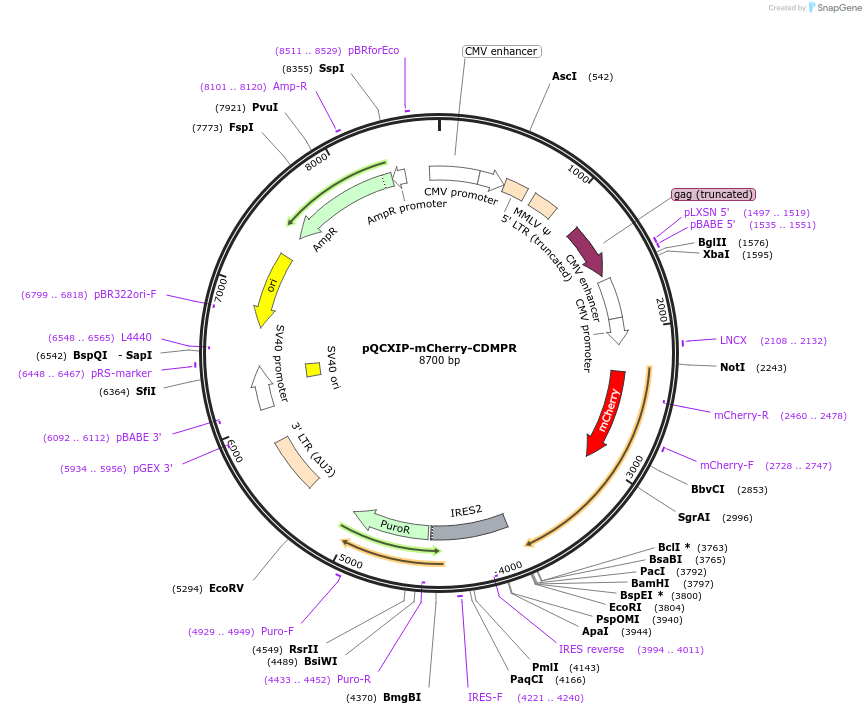

pQCXIP-mCherry-CDMPR
(Plasmid #182643)

• Purpose: Mammalian expression vector encoding a protein fusion composed of an N-terminal ER targeting sequence of hemagglutinin (HA), followed by mCherry and murine CDMPR (without its signal peptide)
• Depositing Lab: Martin Spiess
• Publication: Buser et al Life Sci Alliance. 2022 Mar 21;5(7). pii: 5/7/e202101269. doi: 10.26508/lsa.202101269. Print 2022 Mar.

Backbone

• Vector backbone: pQCXIP
• Backbone manufacturer: Clontech/Takara Bio
• Backbone size w/o insert (bp): 7181
• Total vector size (bp): 8709
• Vector type: Mammalian Expression, Retroviral
• Selectable markers: Puromycin

Growth in Bacteria

• Bacterial Resistance(s): Ampicillin, 100 μg/mL
• Growth Temperature: 37°C
• Growth Strain(s): NEB Stable
• Copy number: High Copy

Gene/Insert

• Gene/Insert name: CDMPR
• Alt name: CDMPR46
• Alt name: Cation-dependent mannose-6-phosphate receptor
• Species: M. musculus (mouse), Synthetic
• Insert Size (bp): 1557
• Promoter: CMV
• Tags / Fusion Proteins:
  • N-terminal ER targeting sequence of hemagglutinin (HA) (N terminal on insert)
  • mCherry (N terminal on insert)

Cloning Information

• Cloning method: Restriction Enzyme
• 5′ cloning site: NotI (not destroyed)
• 3′ cloning site: PacI (not destroyed)
• 5′ sequencing primer: ACGCCATCCACGCTGTTTTGACCT
• 3′ sequencing primer: AAGCGGCTTCGGCCAGTAACGTTA

Terms and Licenses

• Academic/Nonprofit Terms:
  • UBMTA
  • Takara Bio Limited Use Label License (formerly Clontech)
• Industry Terms:
  • Not Available to Industry
