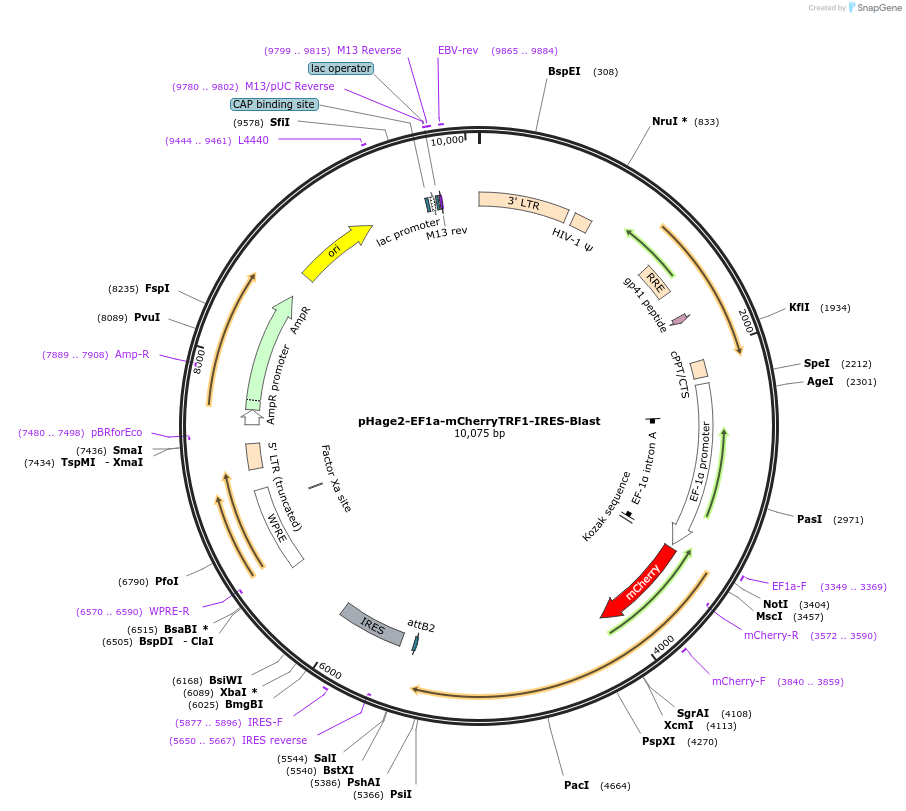

pHage2-EF1a-mCherryTRF1-IRES-Blast
(Plasmid #182588)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 182588 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pHAGE2
  • Backbone size w/o insert (bp) 1314
  • Total vector size (bp) 8761
  • Vector type
    Mammalian Expression, Lentiviral
  • Selectable markers
    Blasticidin

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    NEB Stable
  • Copy number
    Unknown

Gene/Insert

  • Gene/Insert name
    hTRF1
  • Species
    H. sapiens (human)
  • Entrez Gene
    TERF1 (a.k.a. PIN2, TRBF1, TRF, TRF1, hTRF1-AS, t-TRF1)
  • Promoter EF-1a
  • Tag / Fusion Protein
    • mCherry

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site NotI (unknown if destroyed)
  • 3′ cloning site HpaI (unknown if destroyed)
  • 5′ sequencing primer TTCACCGCCACCATGG
  • 3′ sequencing primer CACCACTTTGTACAAG
    • (Common Sequencing Primers)

Resource Information

Terms and Licenses

Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

Please note: This plasmid contains an E296D mutation hTRF1. This mutation is not known to affect plasmid function.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pHage2-EF1a-mCherryTRF1-IRES-Blast was a gift from Agnel Sfeir (Addgene plasmid # 182588 ; http://n2t.net/addgene:182588 ; RRID:Addgene_182588)

  • For your References section:

    Single-Molecule Imaging of Telomerase RNA Reveals a Recruitment-Retention Model for Telomere Elongation. Laprade H, Querido E, Smith MJ, Guerit D, Crimmins H, Conomos D, Pourret E, Chartrand P, Sfeir A. Mol Cell. 2020 Jul 2;79(1):115-126.e6. doi: 10.1016/j.molcel.2020.05.005. Epub 2020 Jun 3. 10.1016/j.molcel.2020.05.005 PubMed 32497497
