ttHsCas12a
(Plasmid #182385)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 182385 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

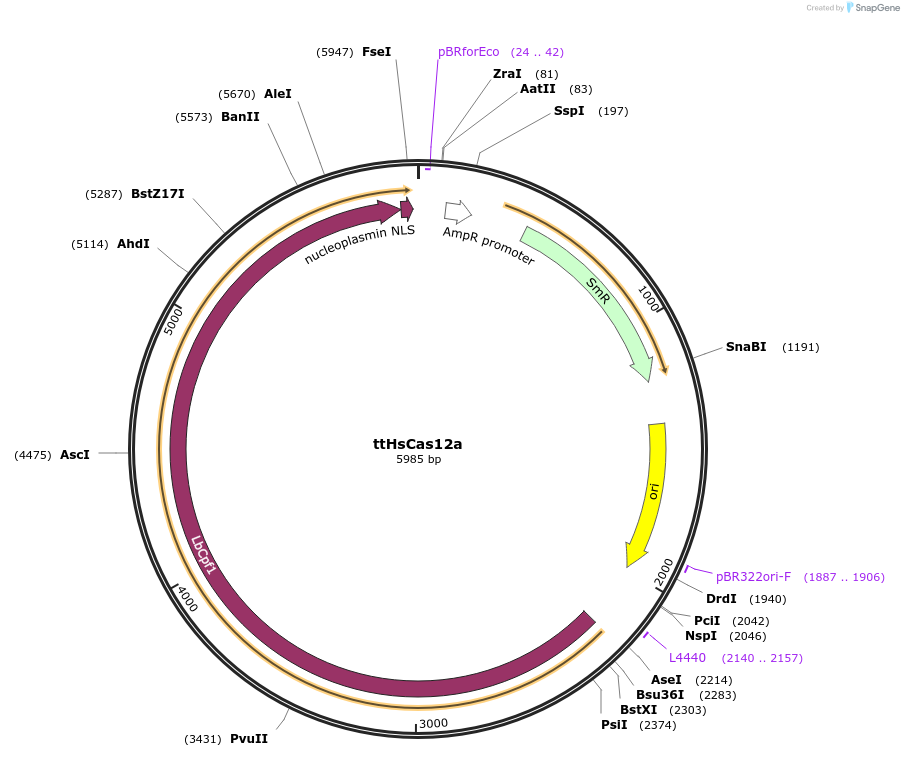

Backbone

  • Vector backbone
    GoldenGate level 0
  • Backbone size w/o insert (bp) 2240
  • Total vector size (bp) 5983
  • Vector type
    CRISPR ; Coding sequence only

Growth in Bacteria

  • Bacterial Resistance(s)
    Spectinomycin, 50 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    ttHsCas12a
  • Species
    H. sapiens (human); Lachnospiraceae bacterium
  • Insert Size (bp)
    3732
  • Mutation
    D156R
  • Promoter None

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site BsaI (not destroyed)
  • 3′ cloning site BsaI (not destroyed)
  • 5′ sequencing primer TCACATGTTCTTTCCTGCG
  • 3′ sequencing primer GTCTCATGAGCGGATACATATTTGAATG
    • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    ttHsCas12a was a gift from Wendy Harwood (Addgene plasmid # 182385 ; http://n2t.net/addgene:182385 ; RRID:Addgene_182385)

  • For your References section:

    Highly efficient genome editing in barley using novel LbCas12a variants and impact of sgRNA architecture. Lawrenson T, Hinchliffe A, Forner M, Harwood W. bioRxiv 2022.04.28.489853 10.1101/2022.04.28.489853
