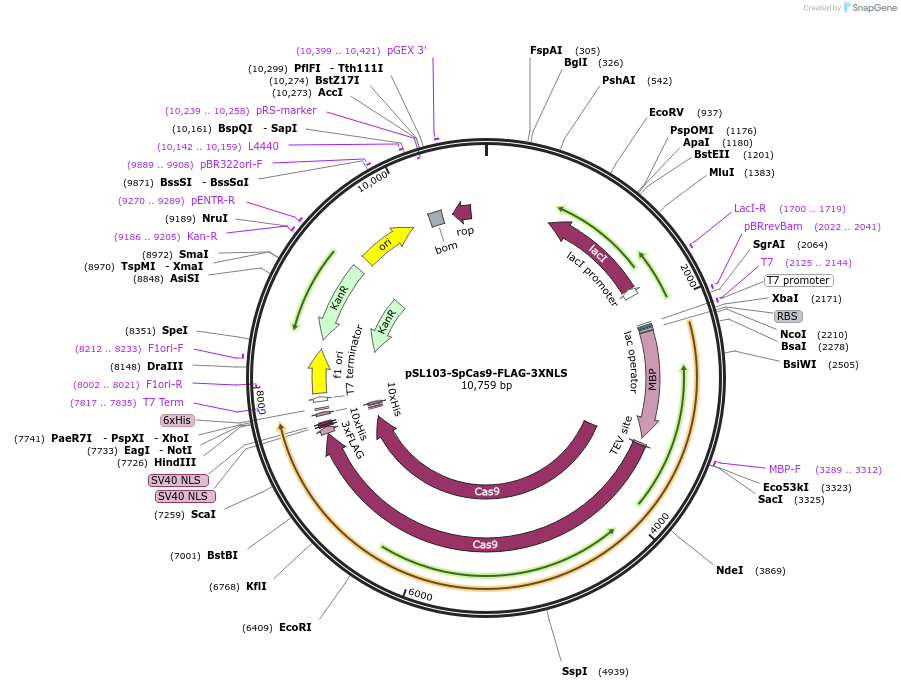

pSL103-SpCas9-FLAG-3XNLS
(Plasmid #182032)

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 182032 Standard format: Plasmid sent in bacteria as agar stab 1 $85

Backbone

  • Vector backbone
    Synthetic vector
  • Backbone size w/o insert (bp) 6484
  • Total vector size (bp) 10762
  • Vector type
    Bacterial Expression, CRISPR

Growth in Bacteria

  • Bacterial Resistance(s)
    Kanamycin, 50 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    Streptococcus pyogenes cas9
  • Alt name
    SpCas9
  • Species
    Synthetic
  • Insert Size (bp)
    4278
  • Entrez Gene
    cas9 (a.k.a. SD90_RS03825, SD90_03830)
  • Promoter T7
  • Tags / Fusion Proteins
    • MBP (N terminal on backbone)
    • FLAG (C terminal on insert)
    • 3XNLS (C terminal on insert)
    • 12X His tag (C terminal on backbone)

Cloning Information

  • Cloning method Gibson Cloning
  • 5′ sequencing primer GACGCGCAGACTAATTCG
  • 3′ sequencing primer GCTAGTTATTGCTCAGCGG
  • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

The ORF of cas9 is codon optimized for E. coli expression and was synthesized by GeneArt.
The additional features (MBP, TEV sites, FLAG, 3XNLS and 12XHis tag) were either PCR amplified from various vectors or purchased as synthetic DNA fragments. All gene fragments were assembled by Gibson cloning into this customized vector.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pSL103-SpCas9-FLAG-3XNLS was a gift from Steven Lin (Addgene plasmid # 182032 ; http://n2t.net/addgene:182032 ; RRID:Addgene_182032)
  • For your References section:

    Preparation of Cas9 Ribonucleoproteins for Genome Editing. Lin SW, Nguyen VQ, Lin S. Bio Protoc. 2022 May 20;12(10):e4420. doi: 10.21769/BioProtoc.4420. eCollection 2022 May 20. 10.21769/BioProtoc.4420 PubMed 35813026
