pRB113.2
(Plasmid #181948)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 181948 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

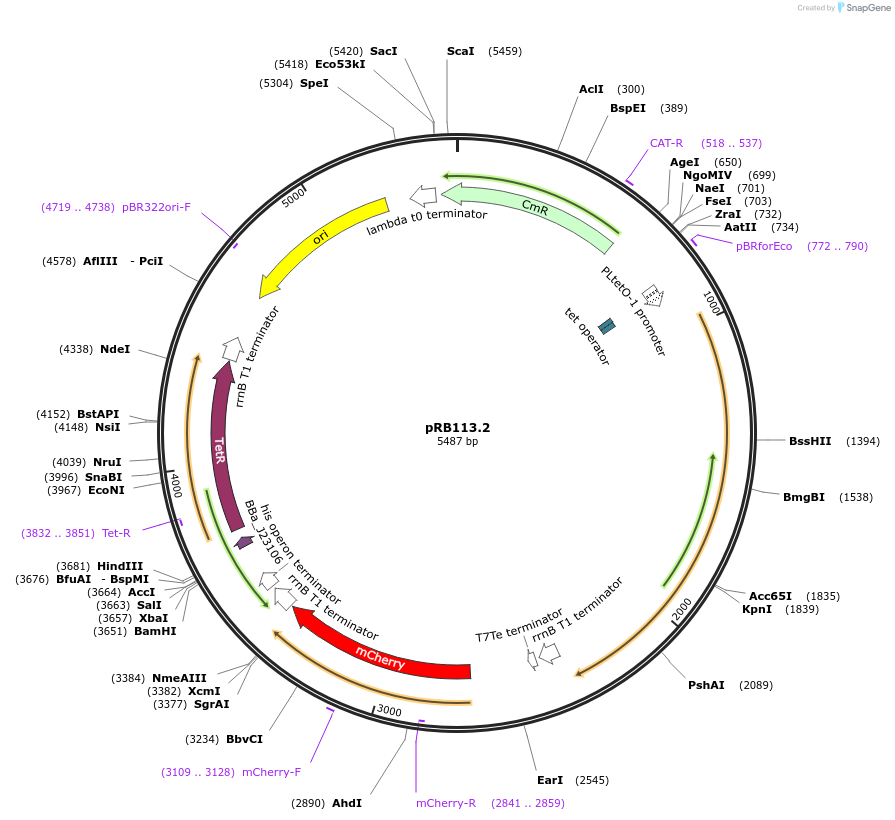

Backbone

  • Vector backbone
    ColE1
  • Backbone size w/o insert (bp) 1706
  • Vector type
    Bacterial Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Chloramphenicol, 25 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    NarL-mNG; mCherry; tetR
  • Species
    Synthetic; narL - E. coli
  • GenBank ID
    NarL - 945795; mNG - QIK01997; mCherry - UFQ89828; tetR - WP_000470728
  • Entrez Gene
    AX04_RS23485 (a.k.a. AX04_RS23485, AX04_23495)
  • Entrez Gene
    narL (a.k.a. b1221, ECK1215, frdR, narR)
  • Promoter NarL-mNG-PLtetO-1; mCherry-PdcuS; tetR-J23106
  • Tag / Fusion Protein
    • mNeonGreen (C terminal on insert)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site BsaI (destroyed during cloning)
  • 3′ cloning site BsaI (destroyed during cloning)

Resource Information

Terms and Licenses

Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pRB113.2 was a gift from Jeffrey Tabor (Addgene plasmid # 181948 ; http://n2t.net/addgene:181948 ; RRID:Addgene_181948)

  • For your References section:

    Real-time detection of response regulator phosphorylation dynamics in live bacteria. Butcher RJ, Tabor JJ. Proc Natl Acad Sci U S A. 2022 Aug 30;119(35):e2201204119. doi: 10.1073/pnas.2201204119. Epub 2022 Aug 22. 10.1073/pnas.2201204119 PubMed 35994658
