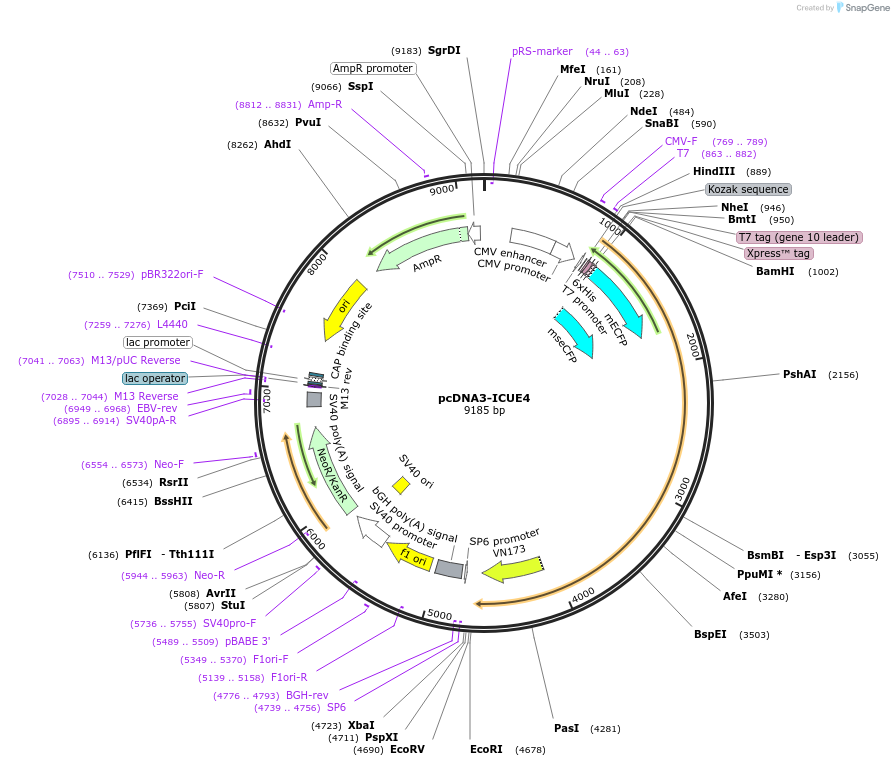

pcDNA3-ICUE4
(Plasmid #181846)

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 181846 Standard format: Plasmid sent in bacteria as agar stab 1 $85

Backbone

  • Vector backbone
    pcDNA3
  • Backbone manufacturer
    Invitrogen
  • Backbone size w/o insert (bp) 5517
  • Total vector size (bp) 9186
  • Vector type
    Mammalian Expression
  • Selectable markers
    Neomycin (select with G418)

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    ICUE4
  • Alt name
    ECFP-Epac1(149-881; Q270E)-cpVenus(L194)
  • Species
    H. sapiens (human)
  • Insert Size (bp)
    3669
  • Mutation
    Glutamine 122 in Epac1 domain mutated to glutamate (corresponds to Q270E in full-length Epac).
  • Entrez Gene
    RAPGEF3 (a.k.a. CAMP-GEFI, EPAC, EPAC1, HSU79275, bcm910)
  • Promoter CMV
  • Tags / Fusion Proteins
    • ECFP (N terminal on insert)
    • cpVenus(L194) (C terminal on insert)
    • 6xHIS - T7 tag (gene 10 leader) - Xpress (TM) tag (N terminal on backbone)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site BamHI (not destroyed)
  • 3′ cloning site EcoRI (not destroyed)
  • 5′ sequencing primer CMV forward
  • 3′ sequencing primer BGH reverse
  • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pcDNA3-ICUE4 was a gift from Jin Zhang (Addgene plasmid # 181846 ; http://n2t.net/addgene:181846 ; RRID:Addgene_181846)
  • For your References section:

    Phase Separation of a PKA Regulatory Subunit Controls cAMP Compartmentation and Oncogenic Signaling. Zhang JZ, Lu TW, Stolerman LM, Tenner B, Yang JR, Zhang JF, Falcke M, Rangamani P, Taylor SS, Mehta S, Zhang J. Cell. 2020 Sep 17;182(6):1531-1544.e15. doi: 10.1016/j.cell.2020.07.043. Epub 2020 Aug 25. 10.1016/j.cell.2020.07.043 PubMed 32846158
