pcDNA3-Lyn-dPlcR
(Plasmid
#181832)
-
PurposeGenetically encoded single-color sensor for monitoring plasma membrane PI(4,5)P2 dynamics in living cells. Based on dimerization-dependent green fluorescent protein (ddGFP).
-
Depositing Lab
-

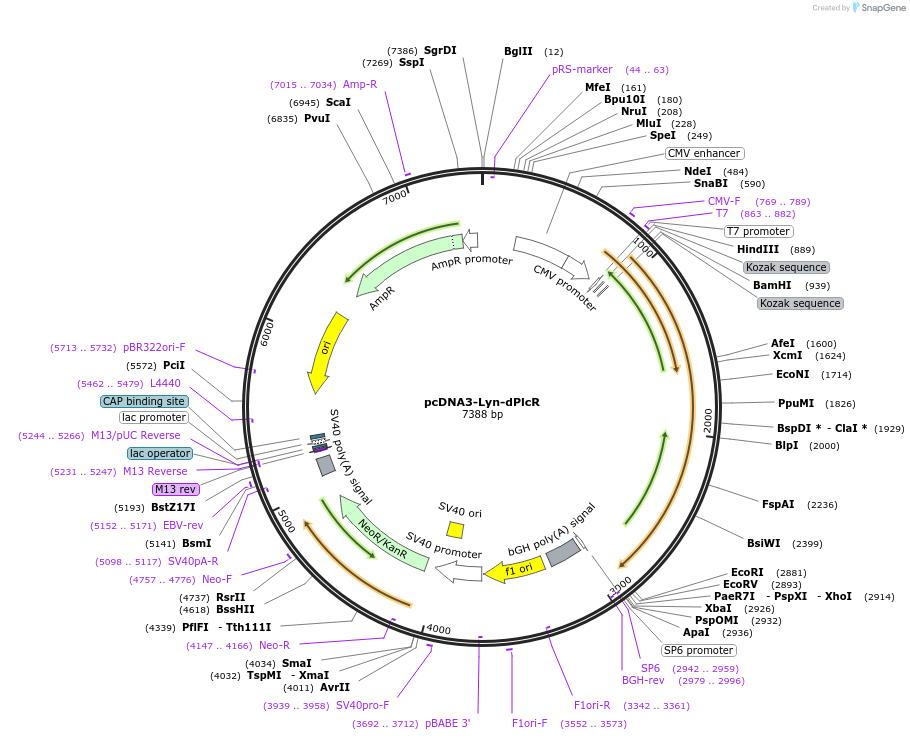

Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 181832 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |
Backbone
-
Vector backbonepcDNA3
-
Backbone manufacturerInvitrogen
- Backbone size w/o insert (bp) 5415
- Total vector size (bp) 7389
-
Vector typeMammalian Expression
-
Selectable markersNeomycin (select with G418)
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameLyn-PlcR
-
Alt nameLyn-GFP_A-PH(PLCdelta)-pseudoligand-FP_B
-
Insert Size (bp)1974
- Promoter CMV
-
Tags
/ Fusion Proteins
- ddGFP-A (N terminal on insert)
- ddFP-B (C terminal on insert)
- N-terminal targeting sequence from Lyn kinase (N terminal on insert)
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site HindIII (not destroyed)
- 3′ cloning site EcoRI (not destroyed)
- 5′ sequencing primer CMV forward
- 3′ sequencing primer BGH reverse (Common Sequencing Primers)
Resource Information
-
Supplemental Documents
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pcDNA3-Lyn-dPlcR was a gift from Jin Zhang (Addgene plasmid # 181832 ; http://n2t.net/addgene:181832 ; RRID:Addgene_181832) -
For your References section:
Fluorescent Biosensors for Multiplexed Imaging of Phosphoinositide Dynamics. Hertel F, Li S, Chen M, Pott L, Mehta S, Zhang J. ACS Chem Biol. 2020 Jan 17;15(1):33-38. doi: 10.1021/acschembio.9b00691. Epub 2020 Jan 6. 10.1021/acschembio.9b00691 PubMed 31855412
