pTox-EGFPsite1_NGA-PAM (BPK754)
(Plasmid
#181747)
-
Purposep11-lacY-wtx1 derivative toxic plasmid encoding an SpCas9 target site for EGFP site 1 with an NGA PAM
-
Depositing Lab
-
Sequence Information
Ordering
This material is available to academics and nonprofits only.
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 181747 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 | |
Backbone
-
Vector backbonep11-LacY-wtx1 (Addgene Plasmid #69056)
-
Vector typeselection plasmid
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberLow Copy
Gene/Insert
-
Gene/Insert nameccdB toxin gene and SpCas9 target site (EGFP site 1 NGA PAM)
-
Alt nameBPK754
-
SpeciesSynthetic
Cloning Information
- Cloning method Gibson Cloning
- 5′ sequencing primer oBK310-GGAAGAAGTGGCTGATCTCAGC (Common Sequencing Primers)
Resource Information
-
Supplemental Documents
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
How to cite this plasmid
( Back to top)
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pTox-EGFPsite1_NGA-PAM (BPK754) was a gift from Benjamin Kleinstiver (Addgene plasmid # 181747 ; http://n2t.net/addgene:181747 ; RRID:Addgene_181747) -
For your References section:
Precise DNA cleavage using CRISPR-SpRYgests. Christie KA, Guo JA, Silverstein RA, Doll RM, Mabuchi M, Stutzman HE, Lin J, Ma L, Walton RT, Pinello L, Robb GB, Kleinstiver BP. Nat Biotechnol. 2022 Oct 6. pii: 10.1038/s41587-022-01492-y. doi: 10.1038/s41587-022-01492-y. 10.1038/s41587-022-01492-y PubMed 36203014

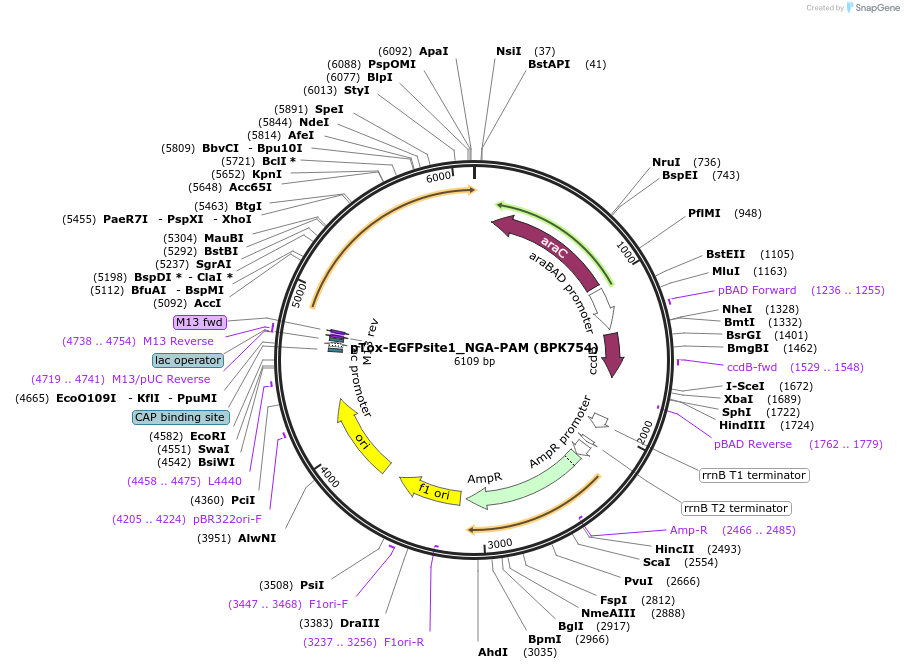

Map uploaded by the depositor.
