pHIV-Zsgreen
(Plasmid #18121)

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 18121 Standard format: Plasmid sent in bacteria as agar stab 1 $85

Backbone

  • Vector backbone
    pSICO
  • Backbone size w/o insert (bp) 6900
  • Vector type
    Mammalian Expression, Lentiviral

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    Stbl3
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    Zsgreen
  • Alt name
    Zoanthus sp. green fluorescent protein
  • Species
    Anthozoa
  • Insert Size (bp)
    700
  • GenBank ID
    AF168422

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site MscI (not destroyed)
  • 3′ cloning site ClaI (not destroyed)
  • 5′ sequencing primer n/a
  • (Common Sequencing Primers)

Resource Information

  • A portion of this plasmid was derived from a plasmid made by
    Zsgreen is from Clontech and pSICO is from Tyler Jacks.
  • Articles Citing this Plasmid

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

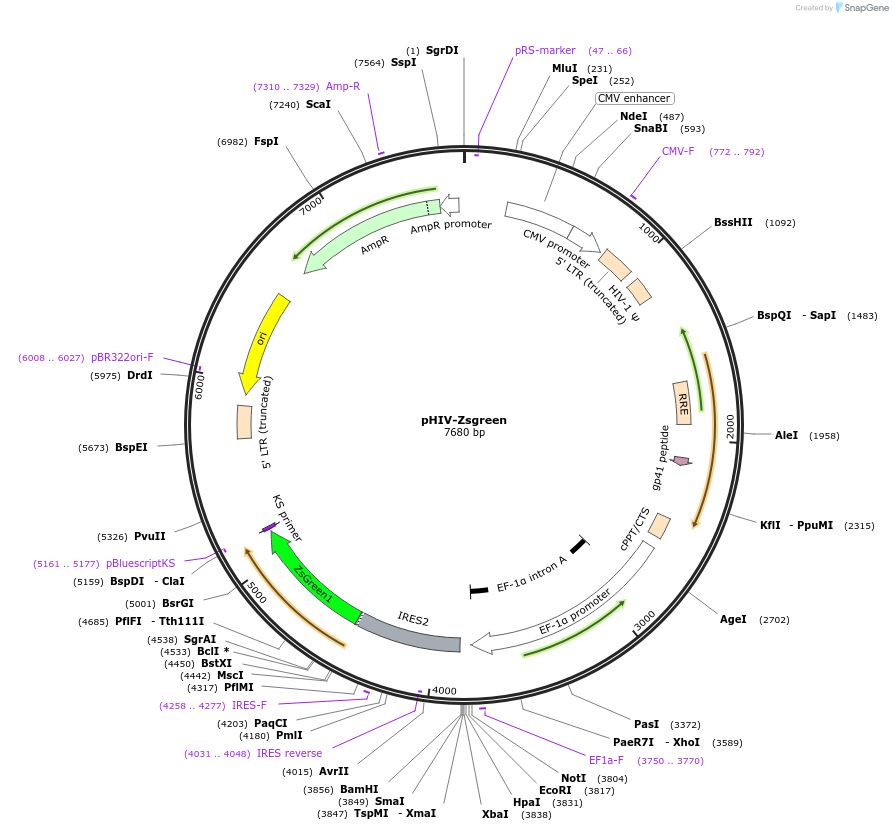

HIV-Zsgreen was cloned by removing the U6-TATAlox-CMVie-EGFP-TATAlox- WPRE content of pSICO (Ventura et al., 2004), and adding the EF1-alpha promoter, a multiple cloning site (MCS), an internal ribosome entry site (IRES) and Zsgreen. cDNA can be cloned into the MCS (NotI, EcoRI, HpaI, XbaI, SmaI, and BamHI sites) to enable bicistronic expression with Zsgreen.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pHIV-Zsgreen was a gift from Bryan Welm & Zena Werb (Addgene plasmid # 18121 ; http://n2t.net/addgene:18121 ; RRID:Addgene_18121)
  • For your References section:

    Lentiviral transduction of mammary stem cells for analysis of gene function during development and cancer. Welm BE, Dijkgraaf GJ, Bledau AS, Welm AL, Werb Z. Cell Stem Cell. 2008 Jan 10. 2(1):90-102. 10.1016/j.stem.2007.10.002 PubMed 18371425
