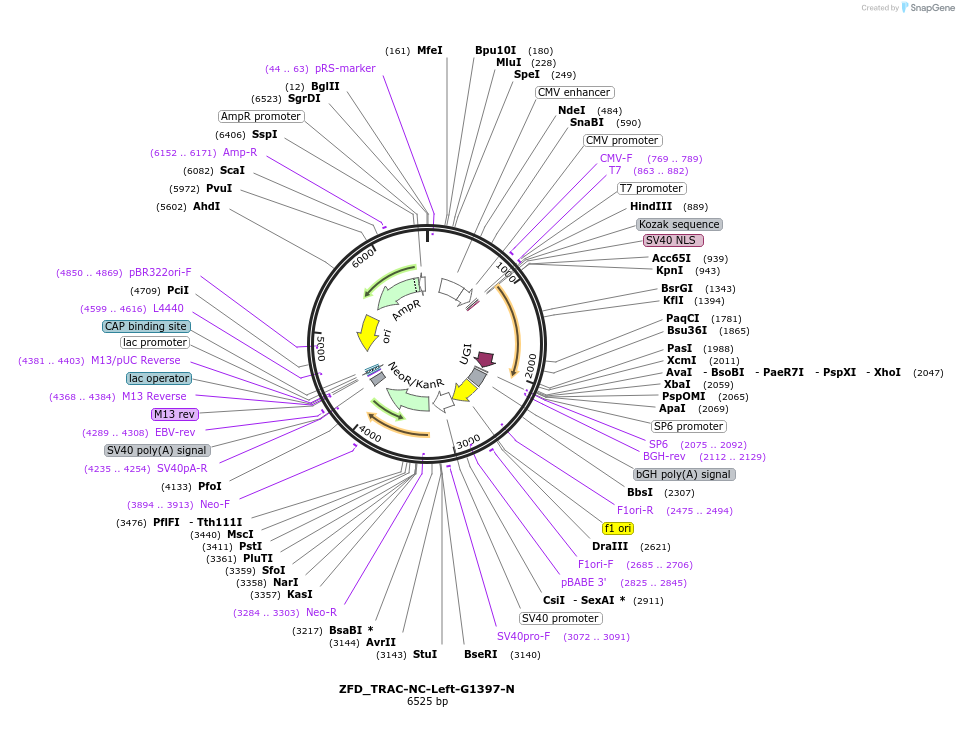

ZFD_TRAC-NC-Left-G1397-N
(Plasmid #180772)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 180772 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    p3s
  • Backbone size w/o insert (bp) 5388
  • Total vector size (bp) 6525
  • Vector type
    Mammalian Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    ZFD for TRAC mutation
  • Species
    Synthetic
  • Insert Size (bp)
    1136
  • Promoter pCMV

Cloning Information

  • Cloning method Gibson Cloning
  • 5′ sequencing primer CGCAAATGGGCGGTAGGCGTG
  • 3′ sequencing primer TAGAAGGCACAGTCGAGG
    • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    ZFD_TRAC-NC-Left-G1397-N was a gift from Jin-Soo Kim (Addgene plasmid # 180772 ; http://n2t.net/addgene:180772 ; RRID:Addgene_180772)

  • For your References section:

    Nuclear and mitochondrial DNA editing in human cells with zinc finger deaminases. Lim K, Cho SI, Kim JS. Nat Commun. 2022 Jan 18;13(1):366. doi: 10.1038/s41467-022-27962-0. 10.1038/s41467-022-27962-0 PubMed 35042880
