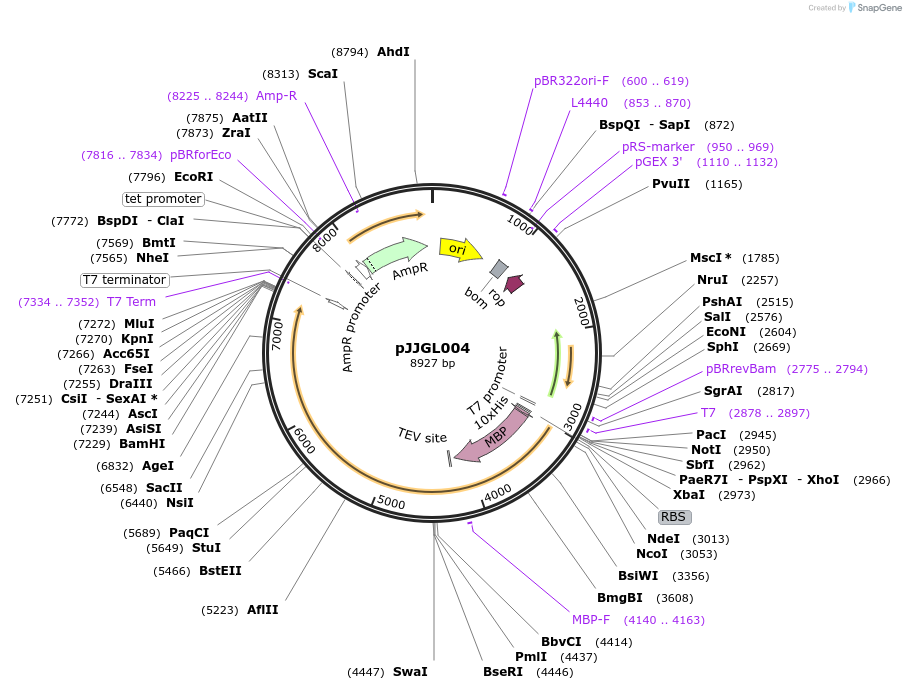

pJJGL004
(Plasmid #180608)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 180608 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    Custom
  • Backbone size w/o insert (bp) 4751
  • Total vector size (bp) 8930
  • Vector type
    Bacterial Expression, CRISPR

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    Unknown

Gene/Insert

  • Gene/Insert name
    PlmCasX with DpbCasX R1 loop
  • Alt name
    PlmCas12e
  • Species
    Planctomycetes, Deltaproteobacteria
  • Promoter T7
  • Tags / Fusion Proteins
    • 10xHis (N terminal on insert)
    • MBP (N terminal on insert)

Cloning Information

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pJJGL004 was a gift from Jennifer Doudna (Addgene plasmid # 180608 ; http://n2t.net/addgene:180608 ; RRID:Addgene_180608)

  • For your References section:

    Chimeric CRISPR-CasX enzymes and guide RNAs for improved genome editing activity. Tsuchida CA, Zhang S, Doost MS, Zhao Y, Wang J, O'Brien E, Fang H, Li CP, Li D, Hai ZY, Chuck J, Brotzmann J, Vartoumian A, Burstein D, Chen XW, Nogales E, Doudna JA, Liu JG. Mol Cell. 2022 Mar 17;82(6):1199-1209.e6. doi: 10.1016/j.molcel.2022.02.002. Epub 2022 Feb 25. 10.1016/j.molcel.2022.02.002 PubMed 35219382
