Depositing Lab
-
Publication
-
Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 18045 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |
Backbone
-

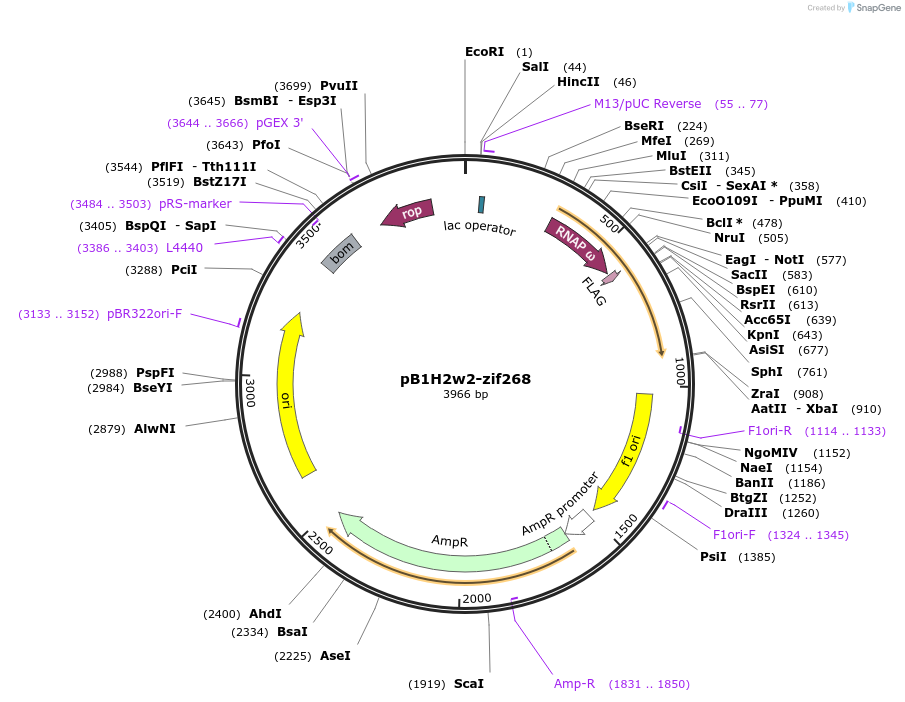

Vector backboneColE1
- Backbone size w/o insert (bp) 3700
-
Vector typeBacterial Expression
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert namezif268
-
SpeciesM. musculus (mouse)
-
Insert Size (bp)267
-
MutationZif268 is fused to the omega subunit of RNA polymerase and is to be used as a positive control.
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site Kpn1 (not destroyed)
- 3′ cloning site Xba1 (destroyed during cloning)
- 5′ sequencing primer OMG5 (Common Sequencing Primers)
Resource Information
-
Articles Citing this Plasmid
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pB1H2w2-zif268 was a gift from Scot Wolfe (Addgene plasmid # 18045 ; http://n2t.net/addgene:18045 ; RRID:Addgene_18045) -
For your References section:
A systematic characterization of factors that regulate Drosophila segmentation via a bacterial one-hybrid system. Noyes MB, Meng X, Wakabayashi A, Sinha S, Brodsky MH, Wolfe SA. Nucleic Acids Res. 2008 Mar 10. ():. 10.1093/nar/gkn048 PubMed 18332042
