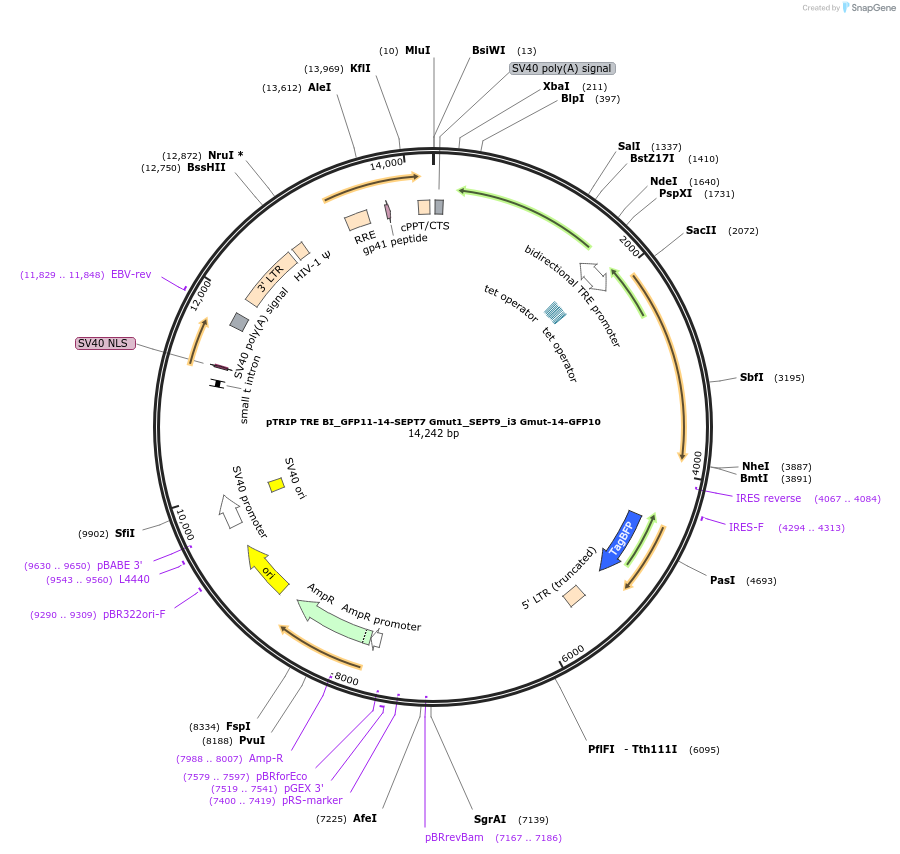

pTRIP TRE BI_GFP11-14-SEPT7 Gmut1_SEPT9_i3 Gmut-14-GFP10
(Plasmid #180356)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 180356 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pTRIP TRE BI
  • Vector type
    Mammalian Expression, Lentiviral

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    NEB Stable
  • Copy number
    High Copy

Gene/Insert 1

  • Gene/Insert name
    SEPTIN7
  • Alt name
    SEPT7
  • Species
    H. sapiens (human)
  • Mutation
    SEPT7 W269A, H279D
  • Entrez Gene
    SEPTIN7 (a.k.a. CDC10, CDC3, NBLA02942, SEPT7, SEPT7A)
  • Promoter bidirectional TRE
  • Tag / Fusion Protein
    • GFP11 (N terminal on insert)

Cloning Information for Gene/Insert 1

Gene/Insert 2

  • Gene/Insert name
    SEPTIN 9
  • Alt name
    SEPT9
  • Mutation
    SEPT9_i3 W502A, H512D
  • Entrez Gene
    SEPTIN9 (a.k.a. AF17q25, MSF, MSF1, NAPB, PNUTL4, SEPT9, SINT1, SeptD1)
  • Promoter bidirectional TRE
  • Tag / Fusion Protein
    • GFP10 (C terminal on insert)

Cloning Information for Gene/Insert 2

Gene/Insert 3

  • Gene/Insert name
    IRES-TagBFP

Resource Information

Terms and Licenses

Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

Please visit https://doi.org/10.1101/2022.02.23.481653 for bioRxiv preprint.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pTRIP TRE BI_GFP11-14-SEPT7 Gmut1_SEPT9_i3 Gmut-14-GFP10 was a gift from Manos Mavrakis (Addgene plasmid # 180356 ; http://n2t.net/addgene:180356 ; RRID:Addgene_180356)

  • For your References section:

    Human septins organize as octamer-based filaments and mediate actin-membrane anchoring in cells. Martins CS, Taveneau C, Castro-Linares G, Baibakov M, Buzhinsky N, Eroles M, Milanovic V, Omi S, Pedelacq JD, Iv F, Bouillard L, Llewellyn A, Gomes M, Belhabib M, Kuzmic M, Verdier-Pinard P, Lee S, Badache A, Kumar S, Chandre C, Brasselet S, Rico F, Rossier O, Koenderink GH, Wenger J, Cabantous S, Mavrakis M. J Cell Biol. 2023 Mar 6;222(3):e202203016. doi: 10.1083/jcb.202203016. Epub 2022 Dec 23. 10.1083/jcb.202203016 PubMed 36562751
