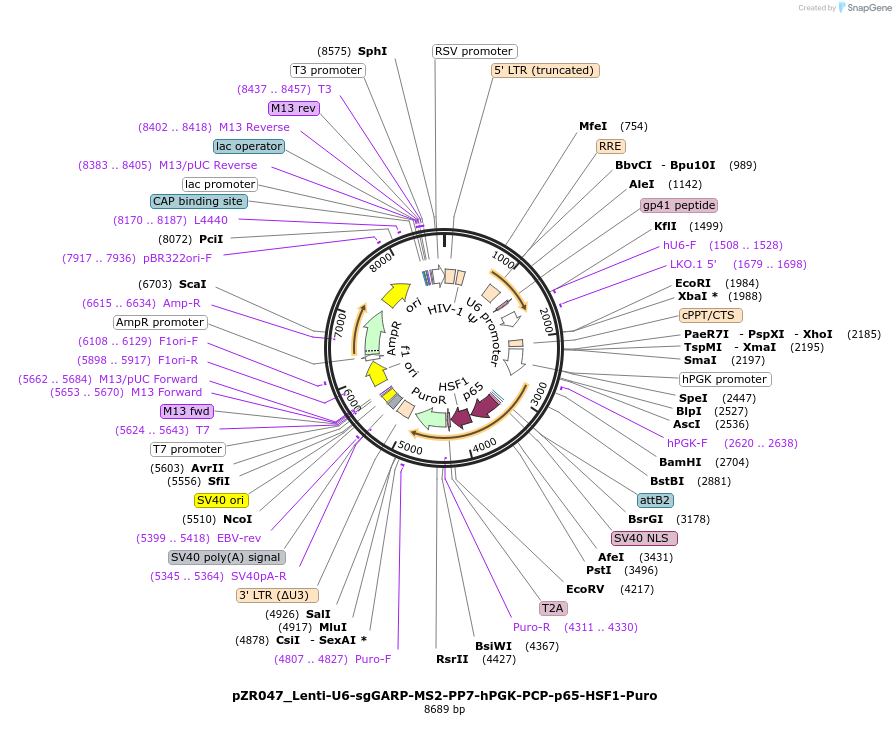

pZR047_Lenti-U6-sgGARP-MS2-PP7-hPGK-PCP-p65-HSF1-Puro
(Plasmid #180268)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 180268 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pXPR_502
  • Total vector size (bp) 8689
  • Vector type
    Mammalian Expression, Lentiviral, CRISPR
  • Selectable markers
    Puromycin

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    NEB Stable
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    GARP sgRNA
  • Species
    Synthetic
  • Insert Size (bp)
    20
  • Promoter U6

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site BsmBI (destroyed during cloning)
  • 3′ cloning site BsmBI (destroyed during cloning)
  • 5′ sequencing primer gagggcctatttcccatgatt
    • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pZR047_Lenti-U6-sgGARP-MS2-PP7-hPGK-PCP-p65-HSF1-Puro was a gift from Alexander Marson (Addgene plasmid # 180268 ; http://n2t.net/addgene:180268 ; RRID:Addgene_180268)

  • For your References section:

    CRISPR activation and interference screens decode stimulation responses in primary human T cells. Schmidt R, Steinhart Z, Layeghi M, Freimer JW, Bueno R, Nguyen VQ, Blaeschke F, Ye CJ, Marson A. Science. 2022 Feb 4;375(6580):eabj4008. doi: 10.1126/science.abj4008. Epub 2022 Feb 4. 10.1126/science.abj4008 PubMed 35113687
