pZR043_Lenti-U6-sgEGFR-MS2-PP7-hPGK-PCP-p65-HSF1-Puro
(Plasmid
#180267)
-
PurposeLentiviral expression vector for CRISPRa-SAM with EGFR targeting sgRNA
-
Depositing Lab
-
Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 180267 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |

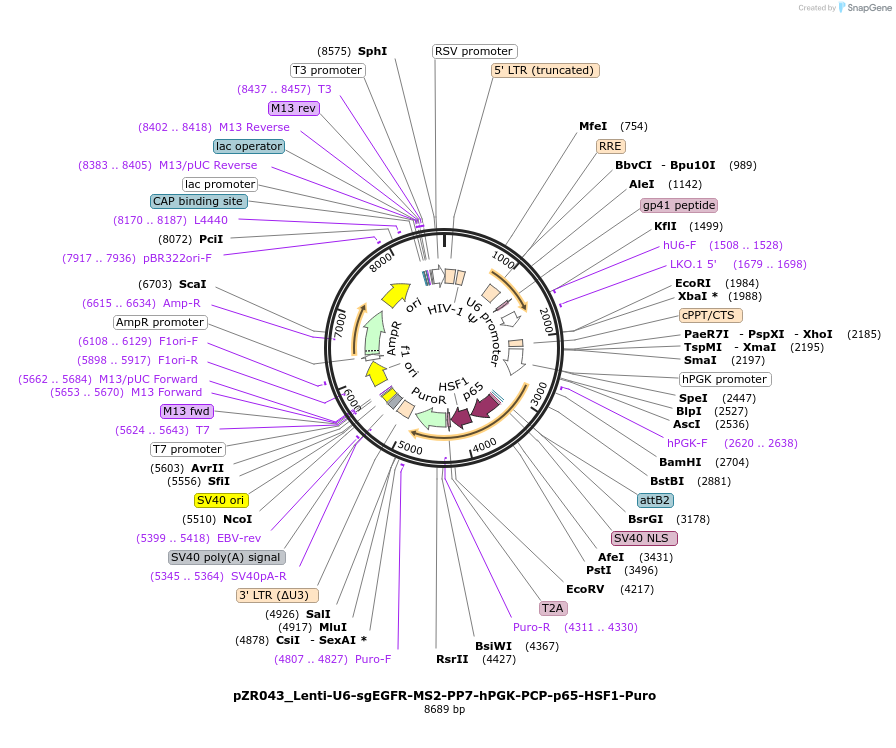

Backbone
-
Vector backbonepXPR_502
- Total vector size (bp) 8689
-
Vector typeMammalian Expression, Lentiviral, CRISPR
-
Selectable markersPuromycin
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)NEB Stable
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameEGFR sgRNA
-
SpeciesSynthetic
-
Insert Size (bp)20
- Promoter U6
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site BsmBI (destroyed during cloning)
- 3′ cloning site BsmBI (destroyed during cloning)
- 5′ sequencing primer gagggcctatttcccatgatt (Common Sequencing Primers)
Resource Information
-
Supplemental Documents
-
A portion of this plasmid was derived from a plasmid made bypXPR_502 was a gift from John Doench & David Root (Addgene plasmid # 96923)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pZR043_Lenti-U6-sgEGFR-MS2-PP7-hPGK-PCP-p65-HSF1-Puro was a gift from Alexander Marson (Addgene plasmid # 180267 ; http://n2t.net/addgene:180267 ; RRID:Addgene_180267) -
For your References section:
CRISPR activation and interference screens decode stimulation responses in primary human T cells. Schmidt R, Steinhart Z, Layeghi M, Freimer JW, Bueno R, Nguyen VQ, Blaeschke F, Ye CJ, Marson A. Science. 2022 Feb 4;375(6580):eabj4008. doi: 10.1126/science.abj4008. Epub 2022 Feb 4. 10.1126/science.abj4008 PubMed 35113687
