pJH3137
(Plasmid
#179617)
-
PurposePunc-4::GCaMP6::RFP unc-54 3' UTR C.elegans A-MNs and others expression of GCaMP6::RFP
-
Depositing Lab
-

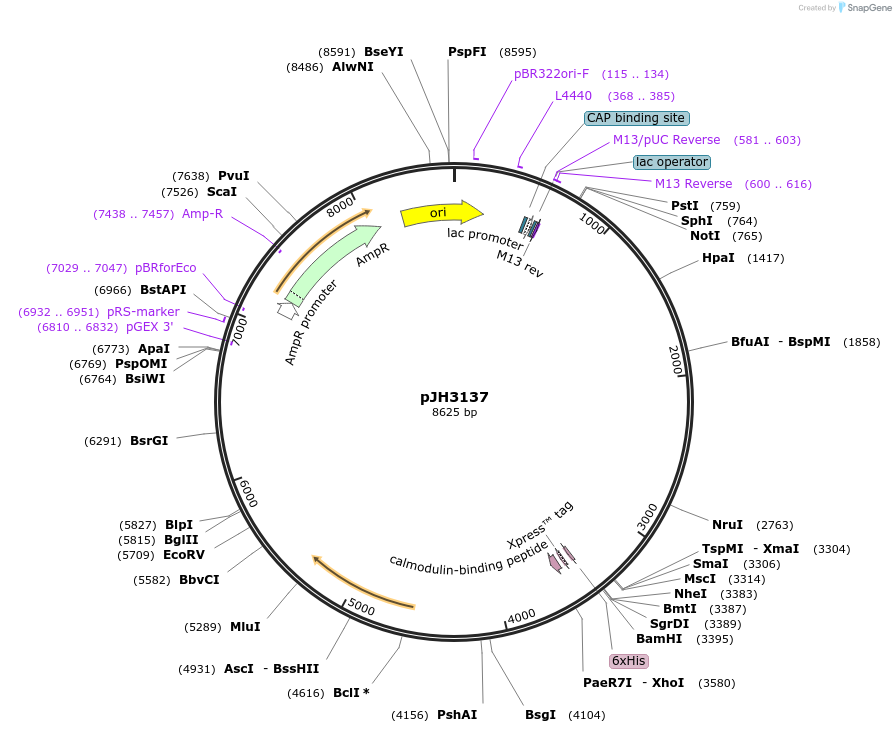

Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 179617 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |
Backbone
-
Vector backbonepBSK
-
Backbone manufacturerstratagene
- Backbone size w/o insert (bp) 7131
- Total vector size (bp) 8634
-
Vector typeWorm Expression
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameGCaMP6
-
Insert Size (bp)1503
-
GenBank ID
- Promoter Punc-4
-
Tag
/ Fusion Protein
- RFP (C terminal on backbone)
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site XmaI (not destroyed)
- 3′ cloning site AscI (not destroyed)
- 5′ sequencing primer ATGGGATCTCACCACCAC
- 3′ sequencing primer CTTGGCGGTCATCATC (Common Sequencing Primers)
Resource Information
-
Supplemental Documents
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pJH3137 was a gift from Mei Zhen (Addgene plasmid # 179617 ; http://n2t.net/addgene:179617 ; RRID:Addgene_179617) -
For your References section:
Excitatory motor neurons are local oscillators for backward locomotion. Gao S, Guan SA, Fouad AD, Meng J, Kawano T, Huang YC, Li Y, Alcaire S, Hung W, Lu Y, Qi YB, Jin Y, Alkema M, Fang-Yen C, Zhen M. Elife. 2018 Jan 23;7. pii: 29915. doi: 10.7554/eLife.29915. 10.7554/eLife.29915 PubMed 29360035
