pET21a Mo-iPGM-bio
(Plasmid
#179614)
-
PurposeExpresses M. orale iPGM containing a C-terminal biotinylation site and His tag in E. coli
-
Depositing Lab
-

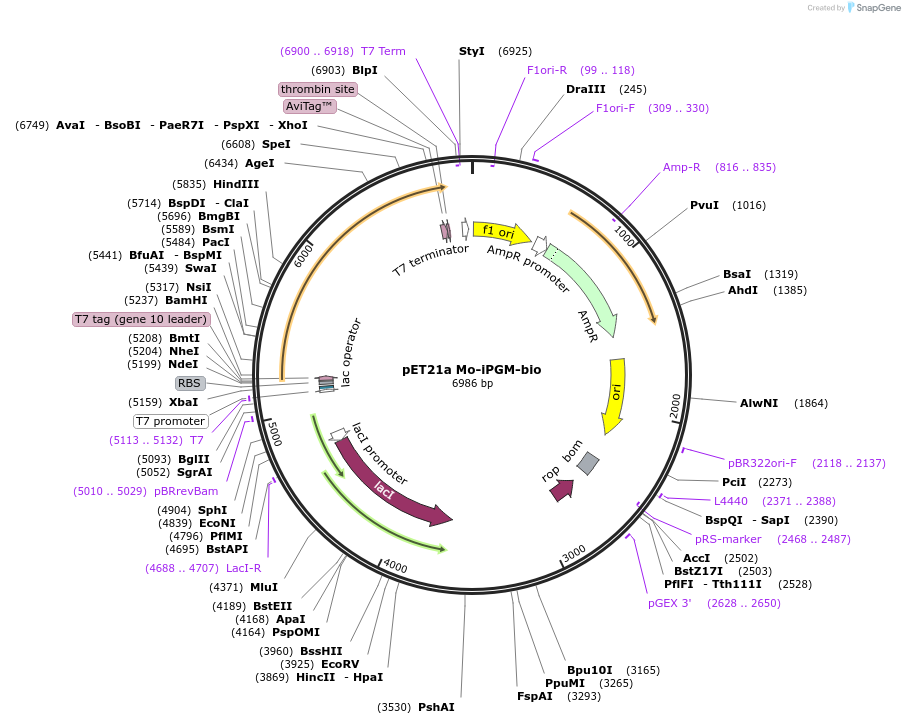

Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 179614 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |
Backbone
-
Vector backbonepET21a
-
Backbone manufacturerEMD Biosciences
- Backbone size w/o insert (bp) 5443
- Total vector size (bp) 6990
-
Modifications to backbone1. Bm-iPGM-AviTag construct in pET21a was modified using site directed mutagenesis to remove the Xho restriction site located after AviTag and generate a universal backbone containing Avitag for easy cloning in frame with His tag. The resulting construct is as follows: BamH1 – Bm-iPGM– Xho1-AviTag-no Xho1-6xHis-stop 2. Bm-iPGM-AviTag is removed using restriction enzymes BamH1/Xho1 and Mo-iPGM (synthetized by BioBasic) is cloned into BamH1/Xho1 restriction sites. The resulting construct is as follows: BamH1 – Mo-iPGM– Xho1-AviTag-no Xho1-6xHis-stop
-
Vector typeBacterial Expression
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameM. orale iPGM bio-6His
-
Alt nameMo iPGM bio
-
Alt name2,3-bisphosphoglycerate-independent phosphoglycerate mutase
-
SpeciesMycoplasma orale
-
Insert Size (bp)1547
-
GenBank IDNZ_LR214940.1
- Promoter T7
-
Tags
/ Fusion Proteins
- biotinylation sequence (C terminal on insert)
- His tag (C terminal on insert)
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site BamH1 (not destroyed)
- 3′ cloning site Xho1 (not destroyed)
- 5′ sequencing primer T7 promotor primer #69348-3
- 3′ sequencing primer T7 terminator primer #69337-3 (Common Sequencing Primers)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pET21a Mo-iPGM-bio was a gift from James Inglese (Addgene plasmid # 179614 ; http://n2t.net/addgene:179614 ; RRID:Addgene_179614) -
For your References section:
Serum-Stable and Selective Backbone-N-Methylated Cyclic Peptides That Inhibit Prokaryotic Glycolytic Mutases. van Neer RHP, Dranchak PK, Liu L, Aitha M, Queme B, Kimura H, Katoh T, Battaile KP, Lovell S, Inglese J, Suga H. ACS Chem Biol. 2022 Aug 19;17(8):2284-2295. doi: 10.1021/acschembio.2c00403. Epub 2022 Jul 29. 10.1021/acschembio.2c00403 PubMed 35904259
