Addgene

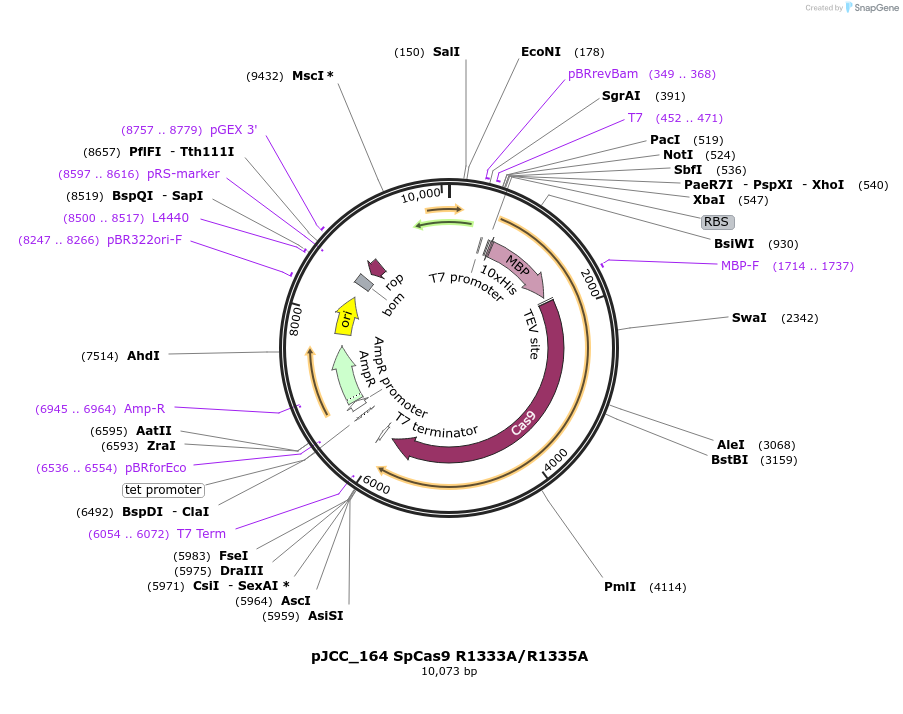

pJCC_164 SpCas9 R1333A/R1335A
(Plasmid #179528)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 179528 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    p2CT
  • Backbone manufacturer
    UC Berkeley MacroLab
  • Backbone size w/o insert (bp) 5969
  • Total vector size (bp) 10073
  • Vector type
    Bacterial Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    SpCas9 R1333A/R1335A
  • Species
    Streptococcus pyogenes
  • Insert Size (bp)
    4104
  • Mutation
    changed arginines 1333 and 1335 to alanine
  • Tags / Fusion Proteins
    • 10X His (N terminal on backbone)
    • maltose-binding protein (N terminal on backbone)
    • TEV protease cleavage site (N terminal on backbone)

Resource Information

  • Supplemental Documents
  • A portion of this plasmid was derived from a plasmid made by
    Addgene plasmid 101199 (pSHS207 - Bacterial expression plasmid for WT SpCas9)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pJCC_164 SpCas9 R1333A/R1335A was a gift from Jennifer Doudna (Addgene plasmid # 179528 ; http://n2t.net/addgene:179528 ; RRID:Addgene_179528)

  • For your References section:

    CRISPR-Cas9 bends and twists DNA to read its sequence. Cofsky JC, Soczek KM, Knott GJ, Nogales E, Doudna JA. Nat Struct Mol Biol. 2022 Apr;29(4):395-402. doi: 10.1038/s41594-022-00756-0. Epub 2022 Apr 14. 10.1038/s41594-022-00756-0 PubMed 35422516
