pJCC_162 SpCas9 KES(1107-1109)GG
(Plasmid
#179526)
-
PurposeFor bacterial expression of SpCas9 KES(1107-1109)GG (phosphate lock loop mutant) with an N-terminal His-MBP tag
-
Depositing Lab
-
Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 179526 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |

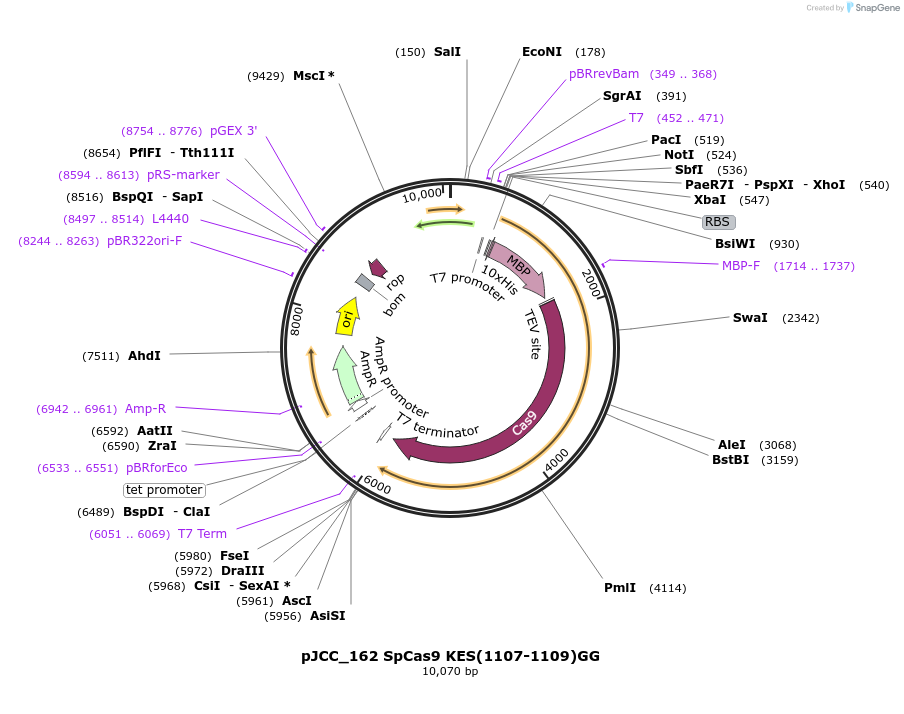

Backbone
-
Vector backbonep2CT
-
Backbone manufacturerUC Berkeley MacroLab
- Backbone size w/o insert (bp) 5969
- Total vector size (bp) 10070
-
Vector typeBacterial Expression
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameSpCas9 KES(1107-1109)GG
-
SpeciesStreptococcus pyogenes
-
Insert Size (bp)4101
-
Mutationreplaced KES (residues 1107-1109) with GG
-
Tags
/ Fusion Proteins
- 10X His (N terminal on backbone)
- maltose-binding protein (N terminal on backbone)
- TEV protease cleavage site (N terminal on backbone)
Resource Information
-
Supplemental Documents
-
A portion of this plasmid was derived from a plasmid made byAddgene plasmid 101199 (pSHS207 - Bacterial expression plasmid for WT SpCas9)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pJCC_162 SpCas9 KES(1107-1109)GG was a gift from Jennifer Doudna (Addgene plasmid # 179526 ; http://n2t.net/addgene:179526 ; RRID:Addgene_179526) -
For your References section:
CRISPR-Cas9 bends and twists DNA to read its sequence. Cofsky JC, Soczek KM, Knott GJ, Nogales E, Doudna JA. Nat Struct Mol Biol. 2022 Apr;29(4):395-402. doi: 10.1038/s41594-022-00756-0. Epub 2022 Apr 14. 10.1038/s41594-022-00756-0 PubMed 35422516
