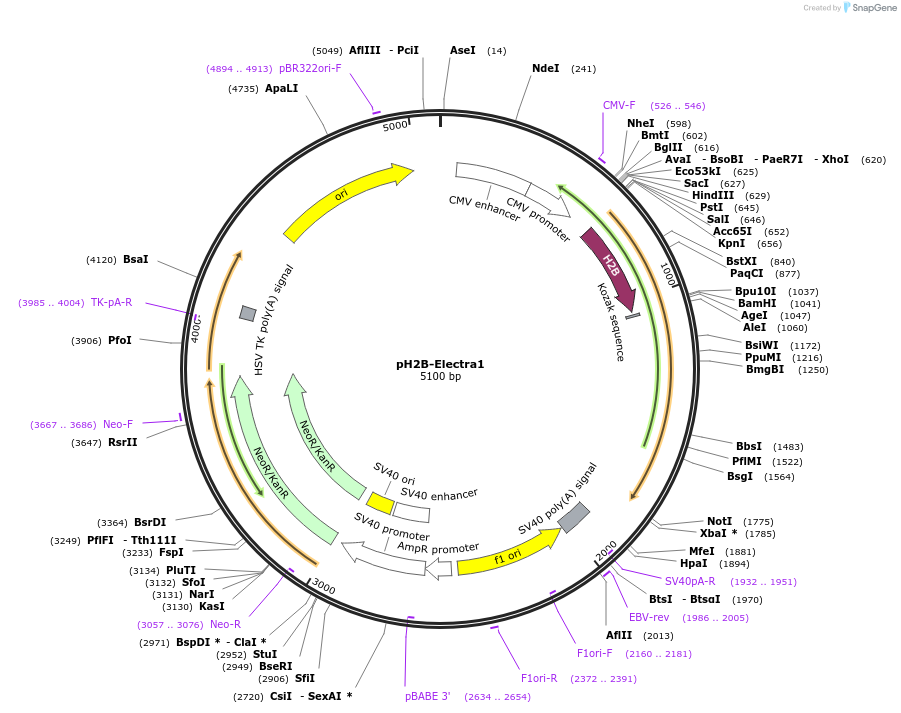

pH2B-Electra1
(Plasmid #179478)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 179478 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pN1
  • Backbone manufacturer
    Clontech
  • Backbone size w/o insert (bp) 3990
  • Total vector size (bp) 5100
  • Vector type
    Mammalian Expression
  • Selectable markers
    Neomycin (select with G418)

Growth in Bacteria

  • Bacterial Resistance(s)
    Kanamycin, 50 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    H2B-Electra1
  • Species
    Synthetic
  • Insert Size (bp)
    1110
  • GenBank ID
    NM_021058.3 OL631606
  • Promoter CMV
  • Tag / Fusion Protein
    • Electra1 (C terminal on backbone)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site AgeI (not destroyed)
  • 3′ cloning site NotI (not destroyed)
  • 5′ sequencing primer CMV-F
  • 3′ sequencing primer SV40pA-R
    • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

Excitation:402nm, Emission:456nm

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pH2B-Electra1 was a gift from Kiryl Piatkevich (Addgene plasmid # 179478 ; http://n2t.net/addgene:179478 ; RRID:Addgene_179478)

  • For your References section:

    Dual-expression system for blue fluorescent protein optimization. Papadaki S, Wang X, Wang Y, Zhang H, Jia S, Liu S, Yang M, Zhang D, Jia JM, Koster RW, Namikawa K, Piatkevich KD. Sci Rep. 2022 Jun 17;12(1):10190. doi: 10.1038/s41598-022-13214-0. 10.1038/s41598-022-13214-0 PubMed 35715437
