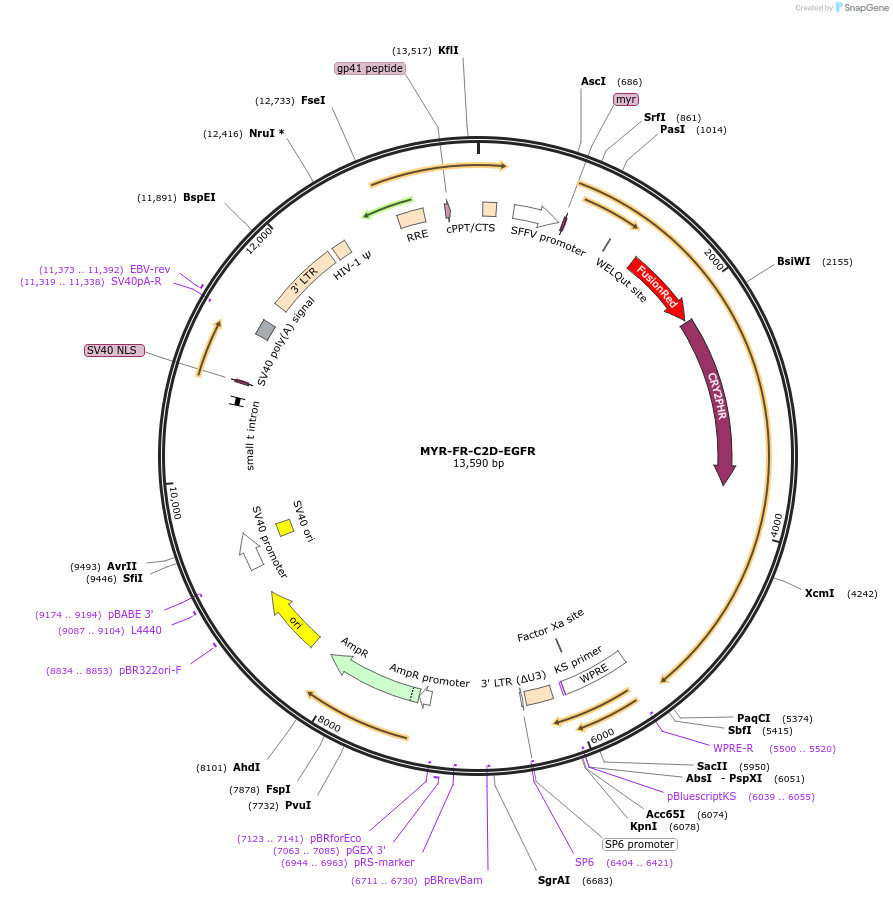

MYR-FR-C2D-EGFR
(Plasmid #179262)

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 179262 Standard format: Plasmid sent in bacteria as agar stab 1 $85

Backbone

  • Vector backbone
    pHR
  • Total vector size (bp) 13537
  • Vector type
    Lentiviral

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    NEB Stable
  • Copy number
    Unknown

Gene/Insert

  • Gene/Insert name
    EGFR
  • Alt name
    ERBB
  • Species
    H. sapiens (human)
  • Insert Size (bp)
    1629
  • Entrez Gene
    EGFR (a.k.a. ERBB, ERBB1, ERRP, HER1, NISBD2, NNCIS, PIG61, mENA)
  • Promoter SFFV
  • Tags / Fusion Proteins
    • FusionRed (N terminal on insert)
    • Cry2 PHR (N terminal on insert)
    • Myristoylation sequence (MYR) (N terminal on insert)
    • FUS (N terminal on insert)

Cloning Information

  • Cloning method Gibson Cloning
  • 5′ sequencing primer ccgacagactgagtcgcccggg
  • 3′ sequencing primer ccagaggttgattatcgataagc
  • (Common Sequencing Primers)

Resource Information

Terms and Licenses

Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    MYR-FR-C2D-EGFR was a gift from Jared Toettcher (Addgene plasmid # 179262 ; http://n2t.net/addgene:179262 ; RRID:Addgene_179262)
  • For your References section:

    Substratum stiffness regulates Erk signaling dynamics through receptor-level control. Farahani PE, Lemke SB, Dine E, Uribe G, Toettcher JE, Nelson CM. Cell Rep. 2021 Dec 28;37(13):110181. doi: 10.1016/j.celrep.2021.110181. 10.1016/j.celrep.2021.110181 PubMed 34965432
