pCAG-mSpata33 (I83A)-PA
(Plasmid
#179132)
-
PurposeExpression vector of mouse spermatogenesis associated 33 (Spata33) tagged with PA at C-terminus, CAG promoter, rabbit globin poly(A) signal. I83A mutation is introduced in Spata33.
-
Depositing Lab
-
Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 179132 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |

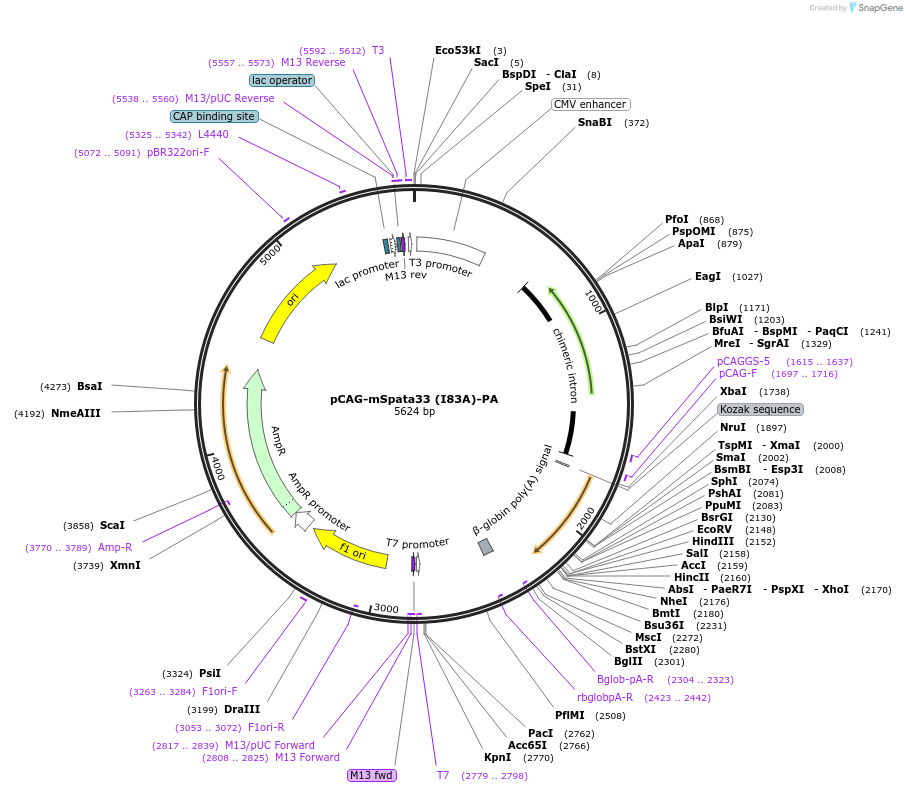

Backbone
-
Vector backbonepCAG1.1
- Backbone size w/o insert (bp) 5211
- Total vector size (bp) 5613
-
Modifications to backbonepCAGGS was used as an original vector. PA sequence was added.
-
Vector typeMammalian Expression
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert namespermatogenesis associated 33
-
Alt nameSpata33
-
SpeciesM. musculus (mouse)
-
Insert Size (bp)402
-
MutationChanged Isoleucine 83 to Alanine
-
Entrez GeneSpata33 (a.k.a. 4732415M23Rik, AI847264)
-
Tag
/ Fusion Protein
- PA (C terminal on backbone)
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site XbaI (not destroyed)
- 3′ cloning site EcoRV (not destroyed)
- 5′ sequencing primer GCCTTCTTCTTTTTCCTACAGC
- 3′ sequencing primer GCCACACCAGCCACCACCTTCTG (Common Sequencing Primers)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pCAG-mSpata33 (I83A)-PA was a gift from Masahito Ikawa (Addgene plasmid # 179132 ; http://n2t.net/addgene:179132 ; RRID:Addgene_179132) -
For your References section:
SPATA33 localizes calcineurin to the mitochondria and regulates sperm motility in mice. Miyata H, Oura S, Morohoshi A, Shimada K, Mashiko D, Oyama Y, Kaneda Y, Matsumura T, Abbasi F, Ikawa M. Proc Natl Acad Sci U S A. 2021 Aug 31;118(35). pii: 2106673118. doi: 10.1073/pnas.2106673118. 10.1073/pnas.2106673118 PubMed 34446558
