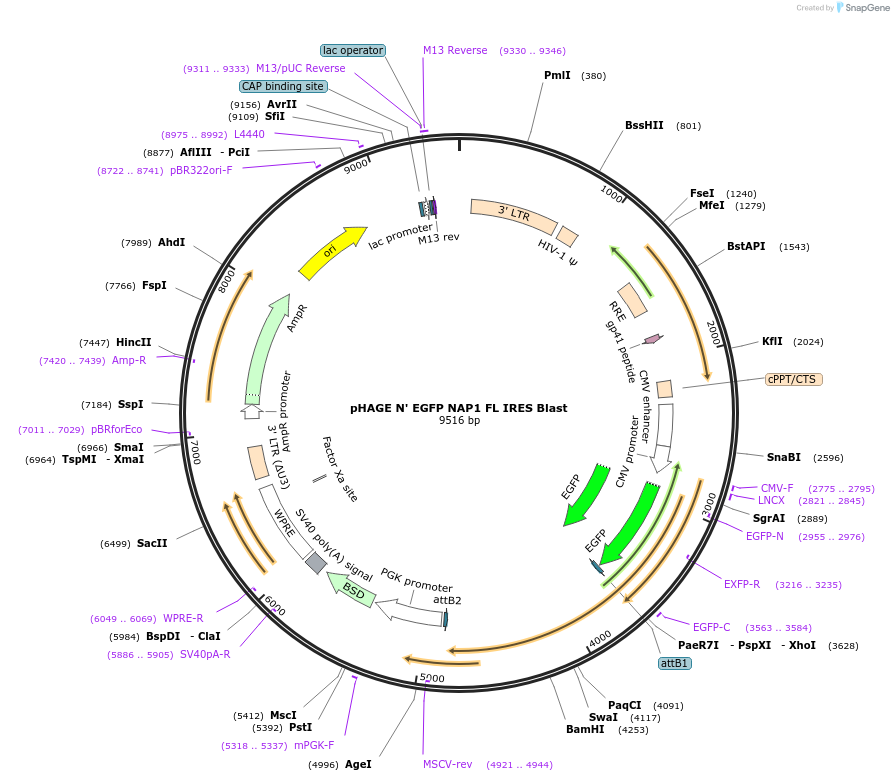

pHAGE N' EGFP NAP1 FL IRES Blast
(Plasmid #179100)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 179100 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pHAGE
  • Backbone manufacturer
    J. Wade Harper's Laboratory
  • Backbone size w/o insert (bp) 8340
  • Total vector size (bp) 9519
  • Vector type
    Mammalian Expression, Lentiviral
  • Selectable markers
    Blasticidin

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    NEB Stable
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    Nak associated protein 1
  • Species
    H. sapiens (human)
  • Insert Size (bp)
    1179
  • Entrez Gene
    AZI2 (a.k.a. AZ2, NAP1, TILP)
  • Promoter CMV
  • Tag / Fusion Protein
    • EGFP (N terminal on backbone)

Cloning Information

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pHAGE N' EGFP NAP1 FL IRES Blast was a gift from Alicia Pickrell (Addgene plasmid # 179100 ; http://n2t.net/addgene:179100 ; RRID:Addgene_179100)

  • For your References section:

    NAK-associated protein 1/NAP1 activates TBK1 to ensure accurate mitosis and cytokinesis. Paul S, Sarraf SA, Nam KH, Zavar L, DeFoor N, Biswas SR, Fritsch LE, Yaron TM, Johnson JL, Huntsman EM, Cantley LC, Ordureau A, Pickrell AM. J Cell Biol. 2024 Feb 5;223(2):e202303082. doi: 10.1083/jcb.202303082. Epub 2023 Dec 7. 10.1083/jcb.202303082 PubMed 38059900
