Addgene

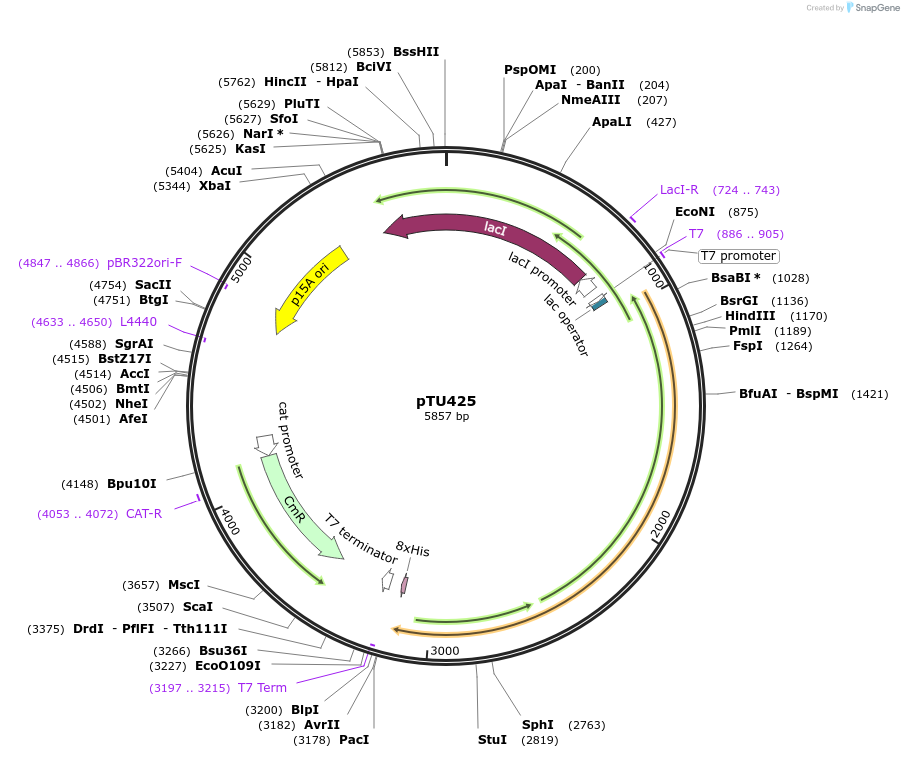

pTU425
(Plasmid #178984)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 178984 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pACYC Duet1
  • Backbone size w/o insert (bp) 3695
  • Total vector size (bp) 5855
  • Vector type
    Bacterial Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Chloramphenicol, 25 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    Low Copy

Gene/Insert

  • Gene/Insert name
    TPR-CHAT H585A C627A
  • Species
    Candidatus Scalindua brodae
  • Insert Size (bp)
    2148
  • Promoter T7
  • Tag / Fusion Protein
    • His-tag (C terminal on backbone)

Cloning Information

  • Cloning method Gibson Cloning
  • 5′ sequencing primer ACATCGTATAACGTTACTGG
  • 3′ sequencing primer GAAGCAGTGTGACCGTGTGC
    • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pTU425 was a gift from Stan Brouns (Addgene plasmid # 178984 ; http://n2t.net/addgene:178984 ; RRID:Addgene_178984)

  • For your References section:

    The gRAMP CRISPR-Cas effector is an RNA endonuclease complexed with a caspase-like peptidase. van Beljouw SPB, Haagsma AC, Rodriguez-Molina A, van den Berg DF, Vink JNA, Brouns SJJ. Science. 2021 Sep 17;373(6561):1349-1353. doi: 10.1126/science.abk2718. Epub 2021 Aug 26. 10.1126/science.abk2718 PubMed 34446442
