pBJ5 hBRG1
(Plasmid #17873)

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 17873 Standard format: Plasmid sent in bacteria as agar stab 1 $85

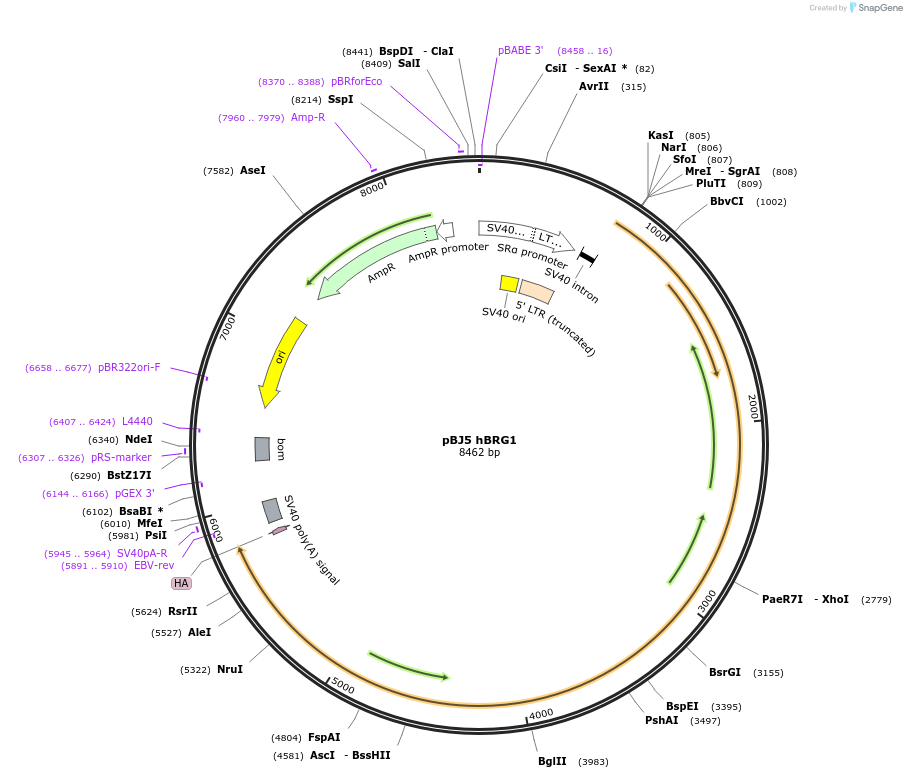

Backbone

  • Vector backbone
    pBJ5
  • Backbone size w/o insert (bp) 3300
  • Vector type
    Mammalian Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    Brg
  • Alt name
    BRG1
  • Alt name
    BAF 190a
  • Species
    H. sapiens (human)
  • Mutation
    R1608Q
  • Entrez Gene
    SMARCA4 (a.k.a. BAF190, BAF190A, BRG1, CSS4, MRD16, OTSC12, RTPS2, SNF2, SNF2-beta, SNF2L4, SNF2LB, SWI2, hSNF2b)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site XhoI/SalI (destroyed during cloning)
  • 3′ cloning site EcoRI (unknown if destroyed)
  • 5′ sequencing primer pcDL-F
  • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

This plasmid is an expression vector for the full length BRG/BAF190 protein which is similar to Drosphila Brm and contains the conserved ATPase domain in the yeast SWI2/SNF2 protein.

Addgene QC NGS analysis identifies an R1608Q mutation relative to NP_001122316.1.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pBJ5 hBRG1 was a gift from Jerry Crabtree (Addgene plasmid # 17873 ; http://n2t.net/addgene:17873 ; RRID:Addgene_17873)
  • For your References section:

    BRG1 contains a conserved domain of the SWI2/SNF2 family necessary for normal mitotic growth and transcription. Khavari PA, Peterson CL, Tamkun JW, Mendel DB, Crabtree GR. Nature. 1993 Nov 11. 366(6451):170-4. 10.1038/366170a0 PubMed 8232556
