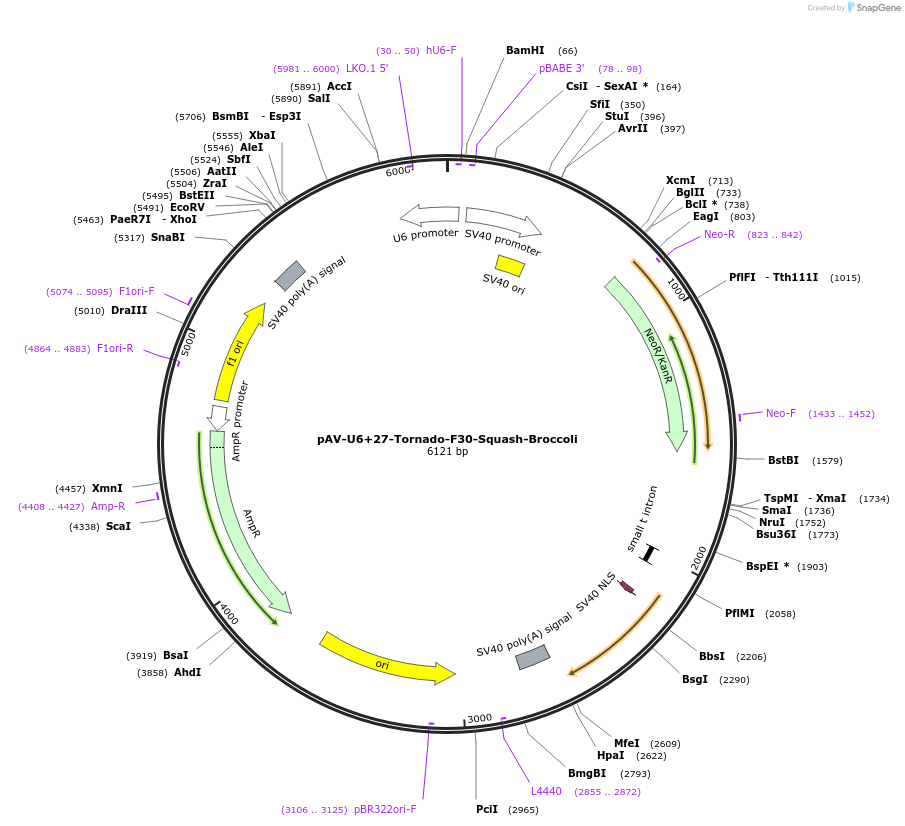

pAV-U6+27-Tornado-F30-Squash-Broccoli
(Plasmid
#177918)
-
PurposeExpresses a bifunctional circular RNA with Squash in one arm and Broccoli in the other arm of the F30 scaffold, in mammalian cells, using the Tornado expression system.
-
Depositing Lab
-
Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 177918 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |
Backbone
-
Vector backbonepAV-U6+27
- Backbone size w/o insert (bp) 6151
- Total vector size (bp) 6480
-
Vector typeMammalian Expression
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)NEB Stable
-
Copy numberUnknown
Gene/Insert
-
Gene/Insert nameTornado-F30-Squash-Broccoli
-
SpeciesSynthetic
-
Insert Size (bp)329
- Promoter U6+27
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site SalI (not destroyed)
- 3′ cloning site XbaI (not destroyed)
- 5′ sequencing primer 5'-GAGGGCCTATTTCCCATGATT-3'
- 3′ sequencing primer 5'-CATATGGATATCGGTAAC-3' (Common Sequencing Primers)
Resource Information
-
Supplemental Documents
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pAV-U6+27-Tornado-F30-Squash-Broccoli was a gift from Samie Jaffrey (Addgene plasmid # 177918 ; http://n2t.net/addgene:177918 ; RRID:Addgene_177918) -
For your References section:
Repurposing an adenine riboswitch into a fluorogenic imaging and sensing tag. Dey SK, Filonov GS, Olarerin-George AO, Jackson BT, Finley LWS, Jaffrey SR. Nat Chem Biol. 2021 Dec 22. pii: 10.1038/s41589-021-00925-0. doi: 10.1038/s41589-021-00925-0. 10.1038/s41589-021-00925-0 PubMed 34937909
