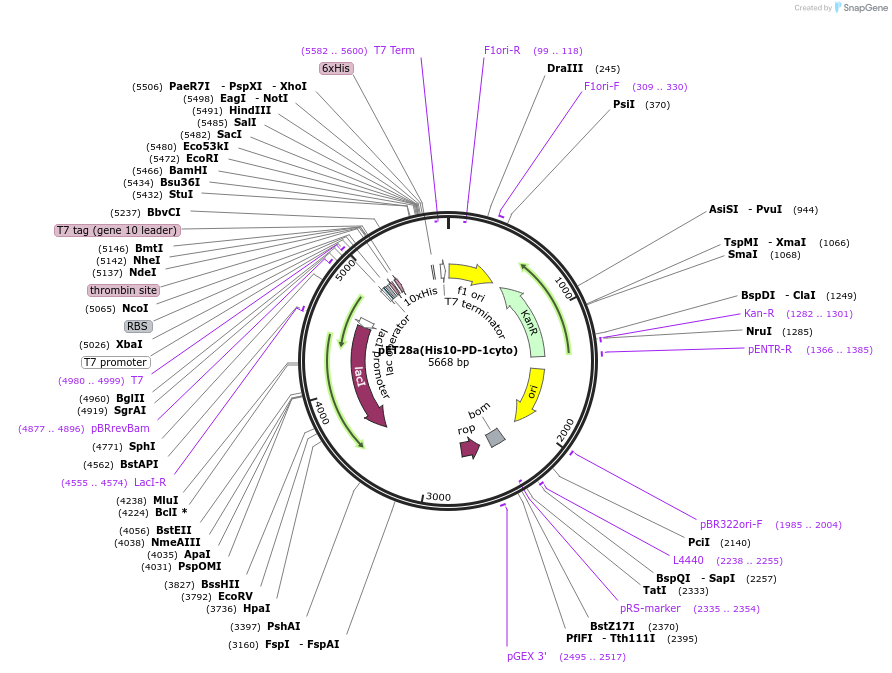

pET28a(His10-PD-1cyto)
(Plasmid
#177896)
-
PurposeE coli expression of His10 tag fused to human PD-1 Intracellular Domain
-
Depositing Lab
-
Sequence Information
Ordering
This material is available to academics and nonprofits only.
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 177896 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 | |
Backbone
-
Vector backbonepET28A
-
Vector typeBacterial Expression
Growth in Bacteria
-
Bacterial Resistance(s)Kanamycin, 50 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberLow Copy
Gene/Insert
-
Gene/Insert namePD-1 (aa 194-288 only)
-
SpeciesH. sapiens (human)
-
Entrez GenePDCD1 (a.k.a. CD279, PD-1, PD1, SLEB2, hPD-1, hPD-l, hSLE1)
- Promoter T7
-
Tag
/ Fusion Protein
- 10xHis-Thrombin cut site-T7 tag (N terminal on insert)
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site unknown (unknown if destroyed)
- 5′ sequencing primer TAATACGACTCACTATAGGG
- 3′ sequencing primer GCTAGTTATTGCTCAGCGG (Common Sequencing Primers)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
How to cite this plasmid
( Back to top)
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pET28a(His10-PD-1cyto) was a gift from Ron Vale (Addgene plasmid # 177896 ; http://n2t.net/addgene:177896 ; RRID:Addgene_177896) -
For your References section:
T cell costimulatory receptor CD28 is a primary target for PD-1-mediated inhibition. Hui E, Cheung J, Zhu J, Su X, Taylor MJ, Wallweber HA, Sasmal DK, Huang J, Kim JM, Mellman I, Vale RD. Science. 2017 Mar 31;355(6332):1428-1433. doi: 10.1126/science.aaf1292. Epub 2017 Mar 9. 10.1126/science.aaf1292 PubMed 28280247
