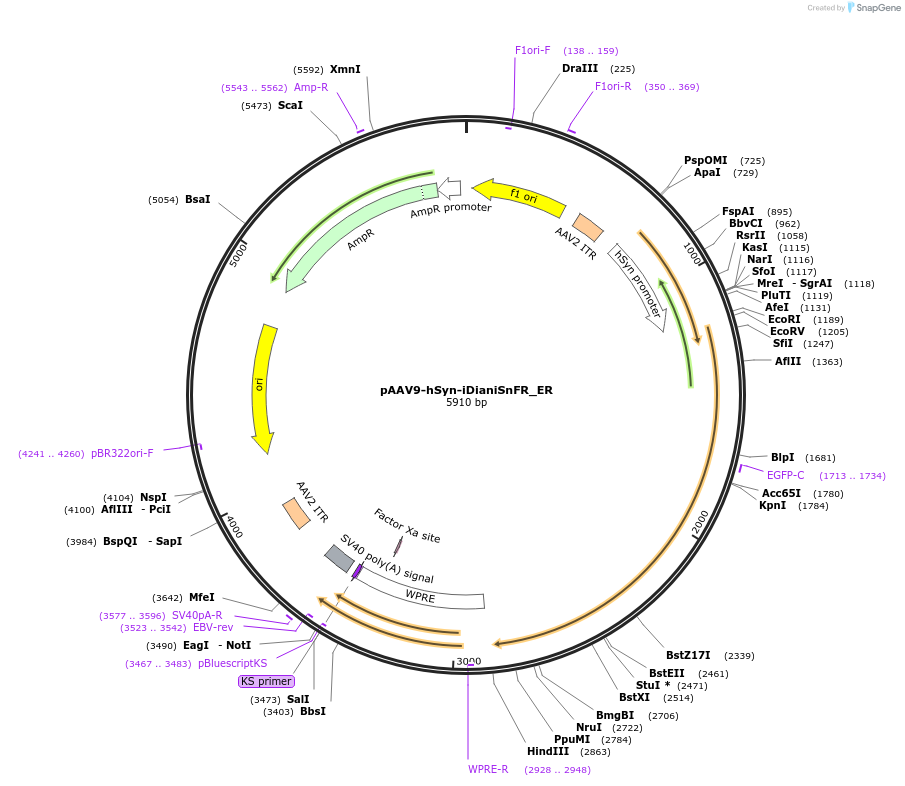

pAAV9-hSyn-iDianiSnFR_ER
(Plasmid #177758)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 177758 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pAAV9-hSyn
  • Backbone manufacturer
    Penn Vector Core
  • Backbone size w/o insert (bp) 5005
  • Vector type
    AAV

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    30°C
  • Growth Strain(s)
    NEB Stable
  • Copy number
    Low Copy

Gene/Insert

  • Gene/Insert name
    pAAV9-hSyn-iDianiSnFR_ER
  • Species
    Synthetic
  • Insert Size (bp)
    1650
  • Promoter hSyn

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site EcoRI (not destroyed)
  • 3′ cloning site HindIII (not destroyed)
  • 5′ sequencing primer Custom hSyn For seq
  • 3′ sequencing primer WPRE Reverse
    • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pAAV9-hSyn-iDianiSnFR_ER was a gift from Henry Lester (Addgene plasmid # 177758 ; http://n2t.net/addgene:177758 ; RRID:Addgene_177758)

  • For your References section:

    Fluorescence activation mechanism and imaging of drug permeation with new sensors for smoking-cessation ligands. Nichols AL, Blumenfeld Z, Fan C, Luebbert L, Blom AE, Cohen BN, Marvin JS, Borden PM, Kim CH, Muthusamy AK, Shivange AV, Knox HJ, Campello HR, Wang JH, Dougherty DA, Looger LL, Gallagher T, Rees DC, Lester HA. eLife. 2022 Jan 4;11. pii: 74648. doi: 10.7554/eLife.74648. 10.7554/eLife.74648 PubMed 34982029
