LT1_36_QUEEN-2m
(Plasmid
#177708)
-
PurposePlasmid for genome integration in X2 site expressing QUEEN-2m (ATP biosensor)
-
Depositing Lab
-
Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 177708 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |

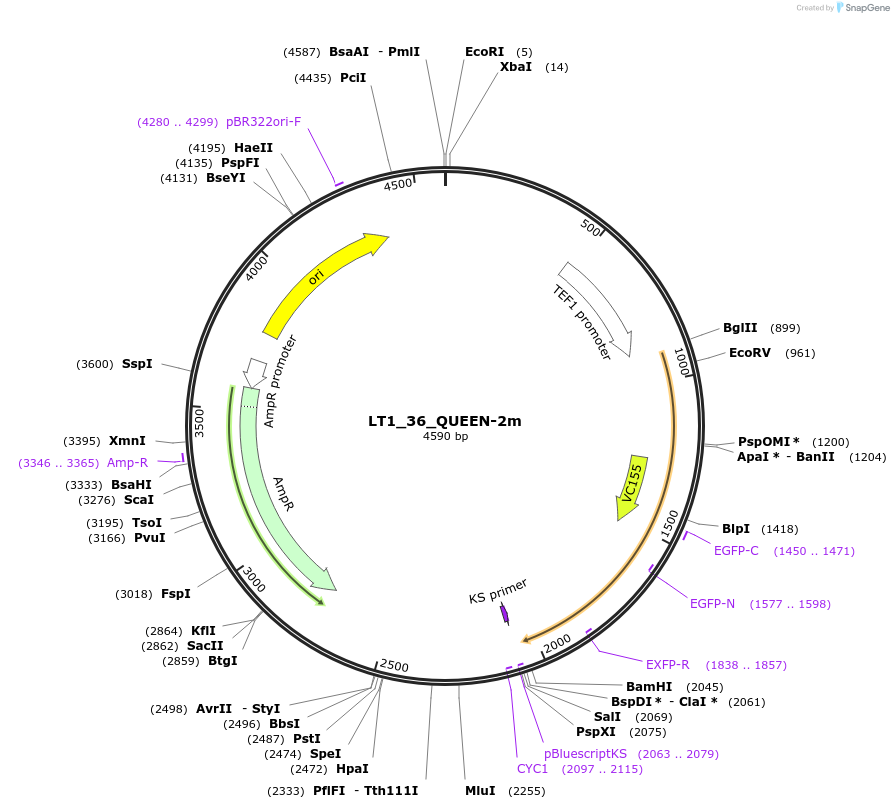

Backbone
-
Vector backboneEmpty backbone
- Total vector size (bp) 4590
-
Vector typeYeast Expression ; Used as donor DNA in genome integration after linearisation with NotI
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert namepTEF1-QUEEN2m
-
SpeciesS. cerevisiae (budding yeast)
Resource Information
-
Supplemental Documents
-
A portion of this plasmid was derived from a plasmid made byDigital CDS of QUEEN-2m was obtained from Addgene plasmid #129350
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
LT1_36_QUEEN-2m was a gift from Lisbeth Olsson (Addgene plasmid # 177708 ; http://n2t.net/addgene:177708 ; RRID:Addgene_177708) -
For your References section:
Real-Time Monitoring of the Yeast Intracellular State During Bioprocesses With a Toolbox of Biosensors. Torello Pianale L, Rugbjerg P, Olsson L. Front Microbiol. 2022 Jan 7;12:802169. doi: 10.3389/fmicb.2021.802169. eCollection 2021. 10.3389/fmicb.2021.802169 PubMed 35069506
