mCherry-7aa-cb5-pEGFP-C1
(Plasmid
#177407)
-
PurposeTo express mCherry fused to endoplasmic reticulum (ER) targeting sequence "Cb5". mCherry faces the cytosol.
-
Depositing Lab
-
Publication
-

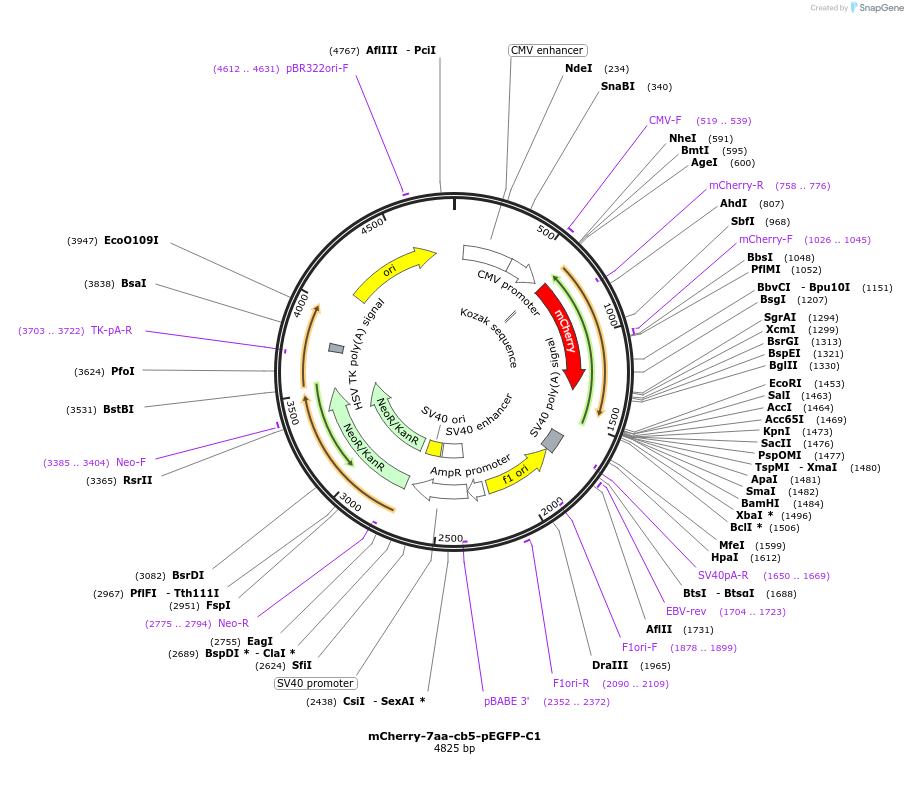

Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 177407 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |
Backbone
-
Vector backbonepEGFP-C1
-
Vector typeMammalian Expression
-
Selectable markersNeomycin (select with G418)
Growth in Bacteria
-
Bacterial Resistance(s)Kanamycin, 50 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberUnknown
Gene/Insert
-
Gene/Insert nameCb5 tail anchor
-
Alt namemCherry-Cb5, Ch-Cb5, ChCb5
-
SpeciesR. norvegicus (rat)
-
Entrez GeneCyb5r4 (a.k.a. Ncb5or, b5&b5R, b5+b5R, cb5/cb5R)
- Promoter CMV
-
Tag
/ Fusion Protein
- mCherry (N terminal on insert)
Cloning Information
- Cloning method Restriction Enzyme
- 5′ sequencing primer TGACGCAAATGGGCGGTAGG
- 3′ sequencing primer TCGCCCTTTGACGTTGGAGTCCAC (Common Sequencing Primers)
Resource Information
-
Supplemental Documents
-
A portion of this plasmid was derived from a plasmid made bySee gene entry for "cytochrome b5 [Rattus norvegicus]", See NCBI Reference Sequence: NP_071581.1. Here we have used only the C-terminal tail anchor sequence. mCherry sequence matches GenBank: AZP55984.1.
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
Transfection of this plasmid will express mCherry-fused to the N-terminus of Cb5 tail anchor sequence" "ITTVESNSSWWTNWVIPAISALVVALMYRLYMAED", which targets the cytoplasmic face of endoplasmic reticulum. There is a flexible, 7 aa linker "SGLRSGK", between mCherry and Cb5.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
mCherry-7aa-cb5-pEGFP-C1 was a gift from David Andrews (Addgene plasmid # 177407 ; http://n2t.net/addgene:177407 ; RRID:Addgene_177407)
